Interference
with the formation of the epididymalmicroenvironmenta new strategy for
male contraception?
X.D.
Gong, G.P.H. Leung, B.L.Y. Cheuk,
P.Y.D. Wong Department
of Physiology, The Chinese University of Hong Kong, Shatin, N.T., Hong
Kong Asian J Androl 2000 Mar; 2: 39-45 Keywords:
|
|
Drug |
Dose
regimen |
Spermatocrit |
%
motile sperm |
|
Control |
- |
62%2.4% |
70%4.5% |
|
Indomethacin |
3mg/kg/day,
3 days |
56%1.3% |
65%3.8% |
|
3mg/kg/day,
10 days |
60%2.6% |
66%3% |
|
|
3mg/kg/day,
30 days |
66%3.5% |
68%3.5% |
|
|
10mg/kg/day,
10 days* |
58%5.5% |
62%1.5% |
|
|
30mg/kg/day,
3 days* |
65%4.5% |
68%2.5% |
|
|
DFU** |
3mg/kg/day,
10 days |
63%2.5% |
65%1.4% |
|
10mg/kg/day,
10 days |
60%2.9% |
65%1.3% |
|
|
10mg/kg/day,
30 days |
61%1.3% |
63%2.3% |
*Rats
showing gastric damage at these dose levels.
**5, 5-dimethyl-3-(3-fluorophenyl)-4-(4-methylsulphonyl)phenyl-2(5H)-furanone.
Spermatocrit was measured by method previously described[17-19]
and sperm motility
was measured by TOX Integrated Visual Optical System for Sperm Analysis
(Hamilton Thorne Research, MA 01915, USA).
5
Other COX-independent pathways
As
with many physiological processes, there are multiple
regulating pathways controlling secretion of electrolytes and fluid
in the epididymis. Blocking one of them
will not lead to severe arrest of secretion as the other pathways compensate
and make up for the loss. Other COX-independent pathways also exist in
the epididymis[8,14,22]. Several hormones and neurotransmitters
can stimulate secretion by directly raising cAMP through receptorG proteincoupled
adenylate cyclase. Furthermore, a number of secretory agonits stimulate
secretion by raising intracellular calcium[7,14,23-30].
Although many control pathways differ in their G-protein-coupled
events, they all
terminate on the apical
membrane of the epididymal epithelial cells where they increase
the conductance of the apical membrane to anions (chloride and bicarbonate)
through activation of chloride channels.
Several anion channels with different characteristics have been
described[31-33] but the one which has great relevance to transepithelial
secretion of electrolytes and fluid is a small conductance cAMP-activated
chloride channel, also known as the cystic fibrosis transmembrane conductance
regulator (CFTR)[34-37]. This
channel plays an integral role
in the secretion of electrolytes and fluid
and hence determines the fluidity of the microenvironment in which
maturing spermatozoa are bathed.
6
The cystic fibrosis transmembrane conductance regulator (the cAMP-activated
chloride channels)
It
is known that an anion channel encoded by the cystic fibrosis transmembrane
conductance regulator (CFTR) gene plays a pivotal role in anion secretion
hence the formation of epididymal fluid environment[38].
The evidence for the importance of this membrane protein has been
borne by the genetic disease cystic fibrosis (CF).
In CF, mutation
of the CFTR gene has led to abnormal luminal environment associated with
blockage or agenesis of the epididymis and vas. CF is a very heterogenous
genetic disease with about 700 mutations known. These myrids of mutations
have given rise to a wide range of phenotypes with varied degree
of disease severity.
For example, the most severe forms of mutation (508)
(thought to be associated
with the most severe loss of CFTR function) have led to clinical CF.
Men carrying these mutations suffer from debilitating respiratory
and pancreatic insufficiency, and also infertility.
In these patients, respiratory failure accounts for the morbidity
and mortality of the disease. The milder forms of mutation (thought to
be associated with moderate loss of CFTR function), on the other hand,
are associated with congenital bilateral absence of the vas deferens (CBVAD)
as the only disease manifestation[39-44]; men carrying these
mutations have apparently normal lung and pancreatic functions.
Furthermore, in
the least severe forms of the disease (associated with minimal loss of
CFTR), poor sperm quality appears to be the only sign in apparently normal
healthy men[45] (Figure
2). These observations
may imply that the male reproductive system is highly dependent
on CFTR for its normal function and consequently most vulnerable to modest
loss of CFTR. Cystic fibrosis
exemplifies the importance of a membrane transport protein in reproduction
and demonstrates the principle that disruption of this protein can compromise
fertility.

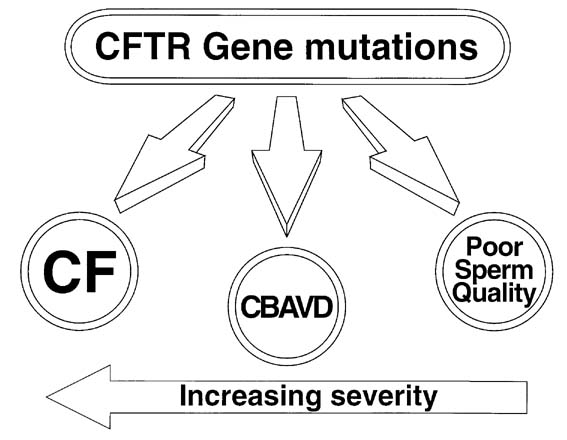

Figure
2. Cystic fibrosis transmembrane conductance regulator (CFTR) mutations
are responsible for poor sperm quality in healthy males with cystic fibrosis
and congenital bilateral absence of the vas deferens (CBAVD). The CFTR
gene has a far-reaching effect on human reproduction.
7
Pharmacological intervention of CFTR in epididymis
Given the importance of CFTR in the formation of the epididymal fluid, pharmacological intervention of CFTR activity could, in principle, lead to alterations of the sperm microenvironment. As with other ion channels on cell membrane, CFTR is amenable to regulation by pharmacological agents[46]. Recently, we reported that genistein, a flavonoid, increases chloride and bicarbonate secretion in the epididymis when added to the apical membrane of the epididymal epithelia. The genistein-induced secretion was observed in basolaterally permeabilized epithelia (Figure 3) and blocked by non-specific chloride channel blockers, diphenylamine-2-carboxylate (DPC), but not by the Ca2+ -activated Cl- channel blocker, 4,4-diisothiocyanostilbene-2,2-disulfonic acid (DIDS), suggesting that the secretion response was mediated by CFTR. Unlike other physiological agonists, genistein did not increase intracellular cAMP, but H-89, a protein kinase A inhibitor, completely abolished the the action of genistein. Furthermore, pretreatment of the tissues with MDL-12330A, an adenylate cyclase inhibitor, markedly attenuated the secretory response to genistein, but the response was restored upon addition of a modest amount (not sufficient to elicit a significant response by itself) of exogenous cAMP. These results suggest the action of genistein is complex and may require CFTR to be in a phosphorylated form before it can exert its stimulating effect. Arising from these experimental results is the proposition that genistein may provide therapeutic benefit to male infertility associated with CF[47].

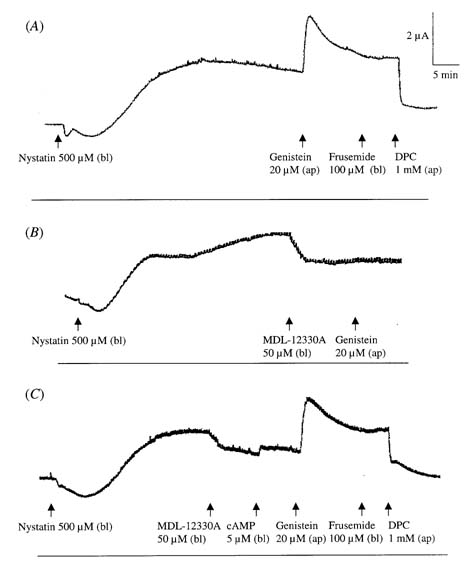

Figure 3. Effect of MDL-12330A (adenylate cyclase inhibitor) on short-circuit current (Isc) (chloride secretion) response to genistein. Tissue was first treated with nystatin (500 M) added basolaterally for 45 min to permeabilize the basolateral membrane, then with MDL-12330A (50 mM) added basolaterally. Genistein (20 M) was then added apically with (C) or without (B) replenishment with cAMP (5 M). Control response to genistein in basolaterally permeabilized epithelium is shown in (A). Horizontal lines indicate zero Isc[47].
In
a contrary manner, blockers of CFTR could be used to disrupt epididymal
microenvironment by blocking fluid secretion.
There are putative blockers of CFTR at present,
but they are neither selective nor potent[46,48].
We have explored some new blockers of epididymal CFTR
with a view to developing
them into potential antifertility agents for men. We found the antifertility
agents lonidamine and its analogue AF 2785 are potent blockers (more potent
than the putative chloride channel blockers)
of CFTR in the epididymis[49]. The inhibition by lonidamine
and AF2785 of the channel should lead to inhibition of transepithelial
secretion of chloride (and secondarily fluid).
Cultured rat epididymal epithelia have been used as a model to
study transepithelial secretion of electrolytes in the epididymis[50,51].
When stimulated with exogenous cAMP or cAMP-elevating agonists, these
epithelia respond by an increase in electrogenic chloride secretion (measured
as short-circuit current, Isc)[50,52] which can be blocked
by putative chloride
channel blockers, such as the arylaminobenzoates and sulfonylureas[48].
Apically applied lonidamine and AF2785 were found to inhibit the cAMP-induced
short-circuit current[49], in keeping with their effects on
chloride conductance. As with the whole-cell patch clamp study, they were
more potent than the conventional chloride channel blockers as evaluated
by the IC50 values. These results are promising as they point
to the potential use of these compounds in blocking fluid secretion by
the epididymis. By virtue of their inhibition of the formation of the
epididymal microenvironment, they can evolve into novel male contraceptives.
Systematic screening of indazole compounds based on lonidamine and AF2785
for their ability to block epididymal CFTR will prove fruitful.
8
CFTR in germ cells
In
addition to anomalies in the epididymis and vas, men with CF are known
to have reduced germ cell number in the testis and many cell types are
malformed[53,54]. This may infer the seminiferous epithelium
being the other infliction site
of the disease. Evidence
are available which suggest
the Sertoli cells from the
rat testes, like the epididymal cells, secrete anions upon stimulation
with cAMP[55]. In line with this observation is the finding
that Sertoli cells express
CFTR[56]. Buchwald
and his colleagues[57,58] using in situ hybridization have
shown CFTR mRNA associated with developing germ cells in the rat testis
but there has been no functional study to demonstrate the presence of
CFTR in germ cells.
Using
whole-cell patch clamp technique we have identified a cAMP-activated chloride
conductance in germ cells isolated from the rat testes (Figure
3). Although the
exact spermatogenic stages of the germ cells exhibiting the CFTR current
was not known with certainty at present, they appeared to be at
the round spermatid stage.
Preliminary study revealed the cAMP-activated current has a linear
voltage/current relationship (Figure
4) and sensitivity to putative
chloride channel blocker (unpublished), consistent with it being a
cAMP-activated chloride current. Whilst functional study points
to the presence of
CFTR in the developing germ cells,
their existence awaits
confirmation by analysis of CFTR mRNA using RT-PCR and CFTR protein
by Western blot analysis.
Figure
4. CFTR chloride current in rat germ cells. Time course of cAMP-evoked
whole-cell current in germ cells (A). Membrane potential was held at -70
mV. 100 M cAMP was
applied to the pipette (internal) solution containing 120 mM CsCl and
20 mM TEA-Cl. The external solution was Krebs-Henseleit (K-H) solution.
The I-V characteristics of the cAMP-evoked current (B). The chloride
current was voltage-independent (C).
Lonidamine[59-61],
AF2785[62] and analogues have been shown to have antispermatogenic
activity. When given to rats they caused a premature shedding of spermatozoa
from the testis[63]. Although these effects have been attributed
to a disruption of germ cellSertoli cell junctional complex, their action
on germ cell CFTR cannot be excluded. While the role of the germ cell
CFTR in spermatogenesis remains unknown, it is conceivable that the antifertility
effects of the indazole compounds may in part be due to an inhibition
of germ cell CFTR.
Given the widespread role of this membrane protein in male reproduction[38],
screening of testis-specific
CFTR inhibitors can provide a new avenue of research into the development
of novel male contraceptives.
9
Acknowledgements
References
[1]
Orgebin-Crist M-C. Sperm maturation in the rabbit epididymis. Nature 1967; 216:
816-8.
[2] Coppola JA. An
extragonadal male antifertility agent. Life Sciences 1969; 8: 43-8.
[3] Ford WCL, Waites GMH. The control of male fertility by 6-chloro-6-deoxysugars.
Reprod Fert Develop 1980; 20:1101-9.
[4] Cooper TG, Yeung CH. Recent biochemical approaches to post-testicular,
epididymal contraception. Hum Reprod Update 1999; 5: 141-52.
[5] Wong PYD.
Mechanism of adrenergic stimulation of anion secretion in cultured rat
epididymal epithelium. Am J Physiol 1988;
254: 121-33.
[6] Wong PYD. Control
of anion and fluid secretion
by P2-purinoceptor in the
rat epididymis. Br
J Pharmacol 1988; 95: 1315-21.
[7] Leung AYH, Yip WK, Wong
PYD. Characterization of
adrenoceptors involved in the
electrogenic chloride secretion by cultured rat epididymal epithelium.
Br J Pharmacol 1992; 107: 146-51.
[8] Leung GPH, Dun SL, Dun NJ, Wong PYD. Serotonin via 5-HT1B
and 5-HT2B receptors stimulates anion secretion in the rat
epididymal epithelium. J Physiol (Lond) 1999;
519: 657-67.
[9] Wong PYD, Chan HC, Leung PS, Chung YW, Wong YL, Lee WM, et al.
Regulation of anion
secretion by cyclo-oxygenase and prostanoids in cultured epididymal epithelia
from the rat. J Physiol (Lond) 1999; 514: 809-20.
[10] Wong PYD, Fu WO,
Huang SJ.
Endothelin stimulates anion secretion in a cultured epithelium.
Br J Pharmacol 1989; 98: 191-96.
[11] Wong PYD, Huang SJ,
Fu WO, Law WK.
Effect of angiotensins on electrogenic anion
transport in monolayer cultures of rat epididymis. J Endocrinol 1990;
125: 448-56.
[12] Lai KB, Fu WO, Ko WH, Chan HC,
Wong PYD. The effect of Arg8-Vasopressin on electrogenic
chloride secretion in cultured rat epididymal epithelia. Am J Physiol
1994; 267: C607-16.
[13] Zhou WL, Leung PS, Wong TP, Dun NJ, Wong PYD,
Chan HC. Local regulation of epididymal anion secretion by pituitary
adenylate cyclase-activating polypeptide. J Endocrinol 1997; 154: 389-95.
[14] Cheuk BLY, Ko WH, Wong PYD.
COX-dependent and COX-independent pathways for the stimulation
of anion secretion by bradykinin in rat epididymis. (submitted) 2000.
[15] Wong PYD. Fluid transport and sperm maturation in the epididymis.
Biomed Res 1986; 7
Suppl 2: 233-40.
[16] Whittle BJR. Experimental basis for non-steroidal anti-inflammatory
drug-induced gut injury. In: Vane JR, Botting RM, editors. Clinical significance
and potential of selective COX-2 inhibitors. London: William Harvey Press;
1998. p 67-75.
[17] Wen RQ, Wong PYD. Reserpine treatment increases viscosity of fluid
in the epididymis of rats. Biol Reprod 1988; 38: 969-74.
[18] Wong PYD, Lee WM.
Effect of spironolactone (aldosterone antagonist) on electrolyte
and water content of the cauda epididymidis and fertility of male rats.
Biol Reprod 1982; 27: 771-7.
[19] Wong PYD, Lee WM, Tsang AYF, Fu WO,
Chan QQ. Lack of an effect of gossypol on epididymis of the rat.
Contraception 1983; 27: 391-6.
[20] Li CS, Black C, Brideau C, Chan CC, Charleson S, Cromlish WA, et
al. A new structural variation on the methanesulfonylphenyl class
of selective cyclooxygenase-2 inhibitors. Bioorg Med Chem Lett 1999; 9:
3181-6.
[21] Langenbach R, Loftin C, Lee C, Tiano H. Cyclooxygenase knockout mice.
Models for elucidating isoform-specific functions. Biochem Pharmacol 1999;
58: 1237-46.
[22] Leung AYH, Leung PY, Cheng-Chew SB,
Wong PYD. The role of calcitonin gene-related peptide in the regulation
of anion secretion by the rat and human epididymis. J Endocrinol 1992;
133: 259-68.
[23] Leung AYH, Tai HL,
Wong PYD. ATP stimulates Ca2+ release from a rapidly
exchanging pool in cultured rat epididymal cells. Am J Physiol 1993; 264:
C1388-94.
[24] Leung AYH, Wong PYD. Ca2+ release in cultured rat epididymal
cells during hypoosmotic swelling.
Pflugers Arch 1993; 425: 77-83.
[25] Leung AYH, Wong
PYD. Biphasic short-circuit current response to noradrenaline mediated
by Ca2+ and cyclic AMP in cultured rat epididymal epithelium.
Pflugers Arch 1994; 426:
396-401.
[26] Chan HC, Fu WO, Chung YW, Zhou TS,
Wong PYD. Adrenergic receptors on cultured rat epididymal cells.
Regulation of Cl- conductances. Biol Reprod 1994; 51: 1040-5.
[27] Chan HC, Lai KB, Fu WO, Chung YW, Chan PSF,
Wong PYD. Regional differences in bioelectrical properties and
anion secretion in cultured epithelia from rat and human male excurrent
ducts. Biol Reprod 1995;
52: 192-8.
[28] Chan HC, Zhou WL, Fu WO, Ko WH, Wong PYD. Different regulatory pathways
involved in ATP-stimulated chloride secretion in rat epididymal epithelium.
J Cell Physiol 1995; 164: 271-6.
[29] Chan CH, Zhou WL, Wong PYD. Extracellular ATP activates both Ca2+
and cAMP-dependent Cl-
conductances in rat epididymal cells. J Mem Biol 1995; 147: 185-93.
[30] Leung AYH, Wong PYD, Yankaskas JR, Boucher RC. cAMP-regulated but
not Ca2+-regulated Cl- is lacking in cystic fibrosis
mice epididymides and seminal vesicles. Am J Physiol 1996; 271: C188-93.
[31] Chan HC, Fu WO, Chung YW, Huang SJ, Chan PSF,
Wong PYD. Swelling-induced anion and cation conductances in human
epididymal cells. J Physiol 1994; 478: 449-60.
[32] Chan HC, Fu WO, Chung YW, Huang SJ, Zhou TS,
Wong PYD. Characterization
of a swelling-induced chloride conductance in cultured rat epididymal
cells. Am J Physiol 1993;
265: C997-1005.
[33] Huang SJ, Fu WO, Chung YW, Zhou TS,
Wong PYD. Properties of cAMP-dependent and Ca2+ -dependent
whole-cell Cl- conductances in the rat epididymal cells. Am
J Physiol 1993; 33: C794-802.
[34] Wong PYD, Huang SJ, Leung AYH, Fu WO, Chung YW, Zhou TS, et al.
Physiology and pathophysiology of electrolyte transport in the epididymis.
In: Nieschlag E, Habenicht U-F, editors. Spermatogenesis-fertilization-contraception:
Molecular, cellular and endocrine events in male reproduction. Heidelberg:
Springer; 1992. p 319-44.
[35] Harris A, Chalkley GC, Lankester SA, Coleman LS. Expression of the
cystic fibrosis gene in human development. Development 1991; 113: 305.
[36] Pollard CE, Harris A, Coleman L, Argent BE. Chloride channels on
epithelial cells from cultured human fetal epididymis. J Mem Biol 1991;
124: 275-84.
[37] Tizzano EF, Silver MM, Chitayat D, Benichou JC, Buchwald M. Differential
cellular expression of cystic fibrosis transmembrane regulator in the
reproductive tissues. Am J Pathol 1994; 144: 906-14.
[38] Wong PYD. CFTR gene and male fertility. Mol Hum Reprod 1998; 107-10.
[39] De Braekeleer M, Frec C. Mutations in the cystic fibrosis gene
in men with congenital bilateral absence of the vas deferens. Mol Hum
Reprod 1996; 2: 669-77.
[40] Anquiano A, Oates RD, Amos JA, Dean M, Gerrard B, Stewart C, et
al. Congenital bilateral
absence of the vas deferens: a primarily genital form of cystic fibrosis.
JAMA 1992; 267: 1794-7.
[41] Oates RD, Amos JA. The genetic basis of congenital bilateral absence
of the vas deferens and cystic fibrosis. J Androl 1994; 15: 1-8.
[42] Patrizio P, Ord T, Silber SJ, Asch RH. Cystic fibrosis mutations
impair the fertilization rate of epididymal sperm from men with congenital
absence of the vas deferens. Hum Reprod 1993; 8, 1259-63.
[43] Chillion M, Casals T, Mercier B, Bassas L, Lissens W, Silber S, et
al. Mutations in the cystic fibrosis gene in patients with congenital
absence of the vas deferens. N Engl J Med 1995; 332: 1475-80.
[44] Rave-Harel N, Kerem E, Nissim-Rafinia M, Madjar I, Goshen R, Augarten
A, et al. The molecular basis of partial penetrance of splicing
mutations in cystic fibrosis. Am J Hum Genet 1997; 60: 87-94.
[45] Van der Ven K, Messer L, van der Ven H, Jeyendran RS, Ober C. Cystic
fibrosis mutation
screening in healthy men with reduced sperm quality. Hum Reprod 1996;
11: 513-7.
[46] Schultz BD, Singh AK, Devor DC, Bridges RJ. Pharmacology of CFTR
chloride channel activity. Physiol Rev 1999; 79, S109-44.
[47] Leung GPH, Wong PYD. Activation of cystic fibrosis transmembrane
conductance regulator in rat epididymal epithelium by genistein. Biol
Reprod 2000; 143-9.
[48] Wong PYD.
Inhibition by chloride channel blockers of anion secretion in cultured
epididymal epithelium and intact epididymis of rats.
Br J Pharmacol
1988; 94: 155-63.
[49] Gong XD, Wong YL, Leung GPH, Cheng CY, Silvestrini B, Wong PYD. Lonidamine
and analogue AF2785 block the cyclic AMP-activated chloride current and
chloride secretion in the rat epididymis. (submitted) 2000.
[50] Cuthbert AW, Wong
PYD. Electrogenic anion secretion in cultured rat epididymal epithelium.
J Physiol 1986; 378: 335-46.
[51] Leung AYH, Wong PYD. Studies of transepithelial Cl- transport
in cultured cauda epididymal cells of rats by short-circuit current method.
J Physiol 1992; 457: 391-406.
[52] Wong PYD. Electrolyte and fluid transport in the epididymis. In:
Young JA, Wong PYD, editors. Epithelial secretion of water and electrolytes.
Heidelberg: Springer-Verlag; 1990. p 333-48.
[53] Brugman SM, Taussig LM. The reproductive system. In: Cystic Fibrosis,
Taussig LM, editors. New York: Thieme-Stratton; 1984. p 323-37.
[54] Denning CR, Sommers SC, Quigley HJ. Infertility in male patients
with cystic fibrosis. Paediatrics 1968; 41: 7-17.
[55] Ko WH, Chan HC, Chew SB, Wong PYD. Regulated anion secretion in cultured
epithelia from Sertoli cells of immature rats. J Physiol 1998;
512: 471-80.
[56] Boockfor FR, Morris RA, DeSimone DC, Hunt DM, Walsh KB. Sertoli cell
expression of the cystic fibrosis transmembrane conductance regulator.
Am J Physiol 1998; 274: C922-30.
[57] Trezise AEO, Linder CC, Grieger D, Thompson EW, Meunier H, Griswold
MD, et al. CFTR expression is regulated during both the cycle of
the seminiferous epithelium and the oestrous cycle of rodents. Nat Genet
1993; 3: 157-64.
[58] Trezise AEO, Buchwald M. In vivo cell-specific expression
of the cystic fibrosis transmembrane conductance regulator. Nature 1991;
353: 434-7.
[59] Corsi G, Palazzo G, Germani C, Barcellona PS, Silvestrini B. 1-Halobenzyl-1H-indazole-3-carboxylic
acids. A new class of antispermatogenic agents. J Med Chem 1976; 19, 778-83.
[60] Silvestrini B, Palazzo G, Gregorio MD. Lonidamine and related compounds.
Prog Med Chem 1984; 21: 111-35.
[61] Martino CD, Malcorni W, Bellocci M, Floridi A, Marcante ML. Effects
of AF1312 and lonidamine
on mammalian testis. A morphological study. Chemotherapy 1981; 27: 27-42.
[62] Silvestrini B, Cheng CY. 3-Substituted 1-benzyl-1H-indazole derivatives
as antiferility agents. U.S. Patent 6,001,865.
[63] Cheng CY, Silvestrini B, Grima J, Mo MY, Zhu LJ, Johansson E, et
al. Two novel male contraceptives exert their effects by depleting
germ cells prematurely from the testis. (submitted) 2000.
Correspondence
to: Professor P.Y.D. Wong, Department of Physiology, The Chinese
University of Hong Kong, Shatin, N.T., Hong Kong.
Fax: +852-2603 5022
E-mail: patrickwong@cuhk.edu.hk
Received
2000-02-21 Accepted 2000-03-02
