Suppression of metastasis of rat prostate cancer by introduction of human chromosome 13 Shigeru Hosoki1, Sho Ota2, Yayoi Ichikawa1,3, Hiroyoshi Suzuki1, Takeshi Ueda1, Yukio Naya1, Koichiro Akakura1, Tatsuo Igarashi1, Mitsuo Oshimura4, Naoki Nihei5, J. Carl Barrett5, Tomohiko Ichikawa1,3, Haruo Ito1 1Department of
Urology, 3Department of Molecular Oncology, Graduate
School of Medicine, Chiba University,
Chiba 260-8670, Japan Asian J Androl 2002 Jun; 4: 131-136 Keywords:
|
Cell
clone |
In
vivo tumor doubling time |
Metastatic
ability |
No.
of animals |
AT3.1
(parental) |
4.90.3 |
467 |
13 |
AT3.1-s11-1 |
4.60.8 |
2617 |
5 |
AT3.1-s11-2 |
5.10.4 |
3811 |
4 |
AT3.1-s11-3 |
5.50.5 |
566 |
7 |
AT3.1-13-1 |
4.20.2 |
11c |
18 |
AT3.1-13-2 |
5.20.3 |
309 |
8 |
AT3.1-13-3 |
5.10.3 |
21c |
21 |
AT3.1-13-4 |
4.10.8 |
0c |
4 |
For further clarification of the portion of human chromosome 13 retained in the four AT3.1-13 clones, PCR analysis was performed with human chromosome 13 specific primers (Figures 3 and 4). Essentially, all of the 24 markers examined were retained in the AT3.1-13-1, AT3.1-13-3 and AT3.1-13-4 clones. The regions between D13S175 and BRCA2, at D13S220, D13S291, and D13S273, and between D13S163 and D13S158 had been spontaneously deleted in the AT3.1-13-2 clone.

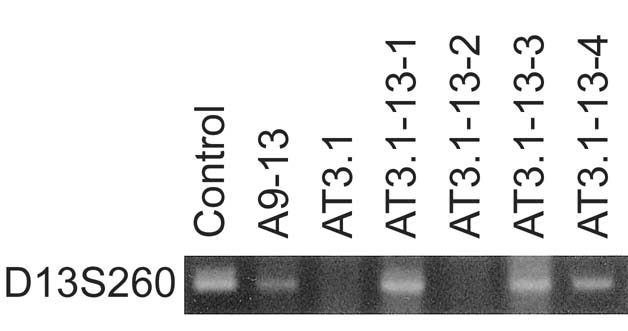

Figure
3. Polymerase chain reaction analysis of DNA from A9-13 clone, AT3.1
parental, and AT3.1-13- microcell hybrids (i.e., AT3.1-13-1, -2,
-3 and -4) using probes that detect a human chromosome 13-specific region
(i.e., D13S260 in this figure). DNA derived from human peripheral
blood was used for the control.

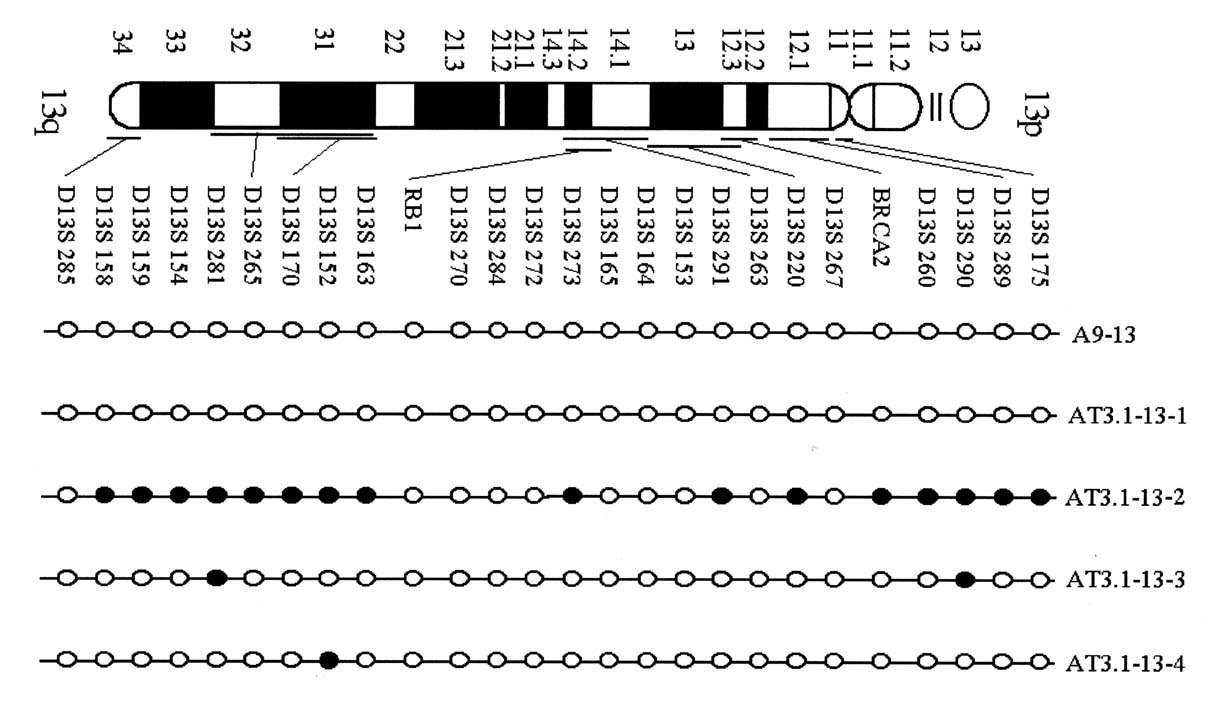

Figure 4. Summary of retention
of human chromosome 13 loci in A9-13 (donor of human chromosome 13) and
AT3.1-13- microcell hybrids examined using polymerase chain reaction analysis.
O, retention of loci; , loss of loci.
To test the effect of the human chromosomes transferred into microcell hybrids on the behavior in vivo of AT3.1 cells, we injected 5 x 105 cells of parental AT3.1, AT3.1-s11 control and AT3.1-13 clones into the athymic nude mice. No significant differences in tumor doubling time or in metastatic ability between parental AT3.1 and AT3.1-s11 control microcell hybrid cells was observed (Table 1). Tumorigenicity and tumor growth rate were not suppressed in any of the four AT3.1-13 clones. The three AT3.1-13 clones that contained almost intact human chromosome 13 produced only 0 to 2 lung metastases, whereas the other AT3.1-13 clone (i.e. AT3.1-13-2) which contained the smallest sized human chromosome 13 produced almost the same number of lung metastases as the parental AT3.1 clone.
To examine the expression of BRCA2 and RB1 genes, which are located at 13q12-13q13 and 13q14.3, respectively, in the AT3.1-13 clones, RT-PCR analysis was performed (Figure 5). The three AT3.1-13 clones that showed suppression of metastatic ability expressed the BRCA2 gene, whereas the other metastasis-unsuppressed AT3.1-13 clone (i.e. AT3.1-13-2) did not. The RB1 gene was expressed in all four AT3.1-13 clones regardless of their metastatic potential.

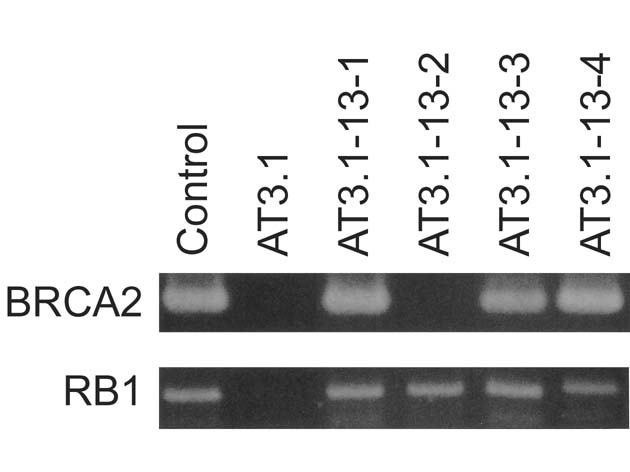

Figure 5. Reverse transcription-polymerase chain reaction analysis of RNA from AT3.1 parental, and AT3.1-13- microcell hybrids (i.e., AT3.1-13-1, -2, -3 and -4) using primers for BRCA2 and RB1. The three AT3.1-13 clones that showed suppression of metastatic ability expressed the BRCA2 gene, whereas the other metastasis-unsuppressed AT3.1-13 clone (i.e. AT3.1-13-2) did not.
4 Discussion
The present study is a continuation of work designed to construct a molecular map of prostate-specific and general suppressors of metastasis within the human genome. Using this rat prostate cancer model and microcell-mediated human chromosome transfer into rat prostate cancer cells, human chromosomes 2, 7, 8, 10, 11, 12, 16 and 17 have been shown to contain metastasis suppressor genes for rat prostate cancer [17, 23-32]. In the case of human chromosome 11, spontaneous deletion of portions of human chromosome 11 has been observed in some clones. Molecular and cytogenetic analyses of these clones have demonstrated that one or more metastasis suppressor genes are located on human chromosome segment 11p13-11.2 [17]. In a continuation of the human chromosome 11 study, using the rat system, a metastasis suppressor gene for prostate cancer, KAI1, was isolated [33]. In the case of human chromosome 17, MKK4/SEK1 was identified from 17p12 as a candidate metastasis suppressor gene [34]. In the subsequent study, a statistically significant, direct and inverse relationship between Gleason pattern and MKK4/SEK1 was observed in human prostate cancer specimens [35]. These findings demonstrate that the present rat prostate cancer system is potentially useful for identifying metastasis suppressor genes for human prostate cancer.
In the present study, introduction of intact human chromosome 13 into rat prostate cancer cells suppressed metastatic ability without affecting the tumor growth rate of microcell hybrid clones. Spontaneous deletions of portions of human chromosome 13 were observed in some clones. The smallest sized human chromosome 13 fragment, which had spontaneous deletions within the regions 13q11-12.3, 13q14.1, and 13q14.2-q32, and which was present in the AT3.1-13-2 clone did not suppress the metastatic ability of the AT3.1 recipient cells. This demonstrates that metastasis suppressor gene(s) may be located within the 13q11-12.3, 13q14.1 and 13q14.2-q32 regions.
Frequent allelic loss on 13q has been well documented [6-14]. The deleted regions reported in these studies overlapped with those observed in the present rat assay system. Hyytinen et al. [10] reported that allelic loss on chromosome 13 at q14, q21-22 and q33 occurred in a subset of primary tumors and was a frequent event in metastatic lesions of prostate cancers. Ueda et al. [8] identified a 1-cM region of common deletion on 13q14, with the frequency of the loss higher in metastatic tissue than in corresponding primary legions (67 %-70 % vs. 25 %-39 %). Two known tumor suppressor genes on human chromosome 13, BRCA2 and RB1, are located at 13q12.3 and 13q14, respectively. In the present study, we used RT-PCR analysis to clarify whether these genes act as tumor suppressor genes in the metastasis-suppressed AT3.1-13 microcell hybrid clones. Expression of BRCA2 was observed only in the metastasis-suppressed hybrid clones, whereas that of RB1 was observed in all hybrid clones regardless of their metastatic potential. This result demonstrates that BRCA2 may function as a metastasis suppressor gene in the present rat system, whereas RB1 does not. According to allelotype studies of human chromosome 13, neither BRCA2 nor RB1 is the main target of the loss of heterozygosity, and other tumor suppressor genes play a key role in prostate cancer. Therefore, these unknown genes could also play an important role in suppression of metastatic ability in the present study.
5 Conclusion
In conclusion, human chromosome 13 contains metastasis suppressor gene(s) for prostate cancer derived from rat. The RB1 gene is not involved in the suppression of metastasis in this system, whereas BRCA2 gene may be. However, still unknown is whether all the metastasis suppressor genes on human chromosomes detected in this rat system are equivalent to the suppressors on the same chromosomes, which have been identified in human tissue. Further analysis is necessary to confirm this potentially useful advantage in the identification of metastasis suppressor gene(s) for prostate cancer.
Acknowledgements
This study was supported in part by Grants-in-Aid for Scientific Research (A)(11307029 & 14207061) and a Grant-in-Aid for Encouragement of Young Scientists (11770882) from the Japan Society for the Promotion of Science, a Grant-in Aid from The Japan Medical Association (1999), and a Grant-in-Aid from The Japanese Urological Association (2000).
References
[1] Landis SH, Murray T,
Bolden S, Wingo PA. Cancer statistics, 1999. CA Cancer J Clin 1999; 49:
8-31, 1.
[2] Hsing AW, Tsao L, Devesa SS. International trends and patterns of
prostate cancer incidence and mortality. Int J Cancer 2000; 85: 60-7.
[3] Polascik TJ, Oesterling JE, Partin AW. Prostate specific antigen:
a decade of discovery--what we have learned and where we are going. J
Urol 1999; 162: 293-306.
[4] Partin AW, Kattan MW, Subong EN, Walsh PC, Wojno KJ, Oesterling JE,
et al. Combination of prostate-specific antigen, clinical stage, and
Gleason score to predict pathological stage of localized prostate cancer.
A multi-institutional update. JAMA 1997; 277: 1445-51.
[5] Ichikawa T, Hosoki S, Suzuki H, Akakura K, Igarashi T, Furuya Y,
et al. Mapping of metastasis suppressor genes for prostate cancer
by microcell-mediated chromosome transfer. Asian J Androl 2000; 2: 167-71.
[6] Visakorpi T, Kallioniemi AH, Syvanen AC, Hyytinen ER, Karhu R, Tammela
T, et al. Genetic changes in primary and recurrent prostate cancer
by comparative genomic hybridization. Cancer Res 1995; 55: 342-7.
[7] Cooney KA, Wetzel JC, Merajver SD, Macoska JA, Singleton TP, Wojno
KJ. Distinct regions of allelic loss on 13q in prostate cancer. Cancer
Res 1996; 56: 1142-5.
[8] Ueda T, Emi M, Suzuki H, Komiya A, Akakura K, Ichikawa T, et al.
Identification of a I-cM region of common deletion on 13q14 associated
with human prostate cancer. Genes Chromosomes Cancer 1999; 24: 183-90.
[9] Latil A, Bieche I, Pesche S, Volant A, Valeri A, Fournier G, et
al. Loss of heterozygosity at chromosome arm 13q and RB1 status in
human prostate cancer. Hum Pathol 1999; 30: 809-15.
[10] Hyytinen ER, Frierson HF, Jr., Boyd JC, Chung LW, Dong JT. Three
distinct regions of allelic loss at 13q14, 13q21-22, and 13q33 in prostate
cancer. Genes Chromosomes Cancer 1999; 25: 108-14.
[11] Yin Z, Spitz MR, Babaian RJ, Strom SS, Troncoso P, Kagan J. Limiting
the location of a putative human prostate cancer tumor suppressor gene
at chromosome 13q14.3. Oncogene 1999; 18: 7576-83.
[12] Dong JT, Chen C, Stultz BG, Isaacs JT, Frierson HF, Jr. Deletion
at 13q21 is associated with aggressive prostate cancers. Cancer Res 2000;
60: 3880-3.
[13] Fu W, Bubendorf L, Willi N, Moch H, Mihatsch MJ, Sauter G, et
al. Genetic changes in clinically organ-confined prostate cancer by
comparative genomic hybridization. Urology 2000; 56: 880-5.
[14] Chen C, Brabham WW, Stultz BG, Frierson HF, Jr., Barrett JC, Sawyers
CL, et al. Defining a common region of deletion at 13q21 in human
cancers. Genes Chromosomes Cancer 2001; 31: 333-44.
[15] Ichikawa T, Ichikawa Y, Isaacs JT. Genetic factors and suppression
of metastatic ability of prostatic cancer. Cancer Res 1991; 51: 3788-92.
[16] Oshimura M, Kugoh H, Koi M, Shimizu M, Yamada H, Satoh H, et al.
Transfer of a normal human chromosome 11 suppresses tumorigenicity of
some but not all tumor cell lines. J Cell Biochem 1990; 42: 135-42.
[17] Ichikawa T, Ichikawa Y, Dong J, Hawkins AL, Griffin CA, Isaacs WB,
et al. Localization of metastasis suppressor gene(s) for prostatic
cancer to the short arm of human chromosome 11. Cancer Res 1992; 52: 3486-90.
[18] Ichikawa T, Kyprianou N, Isaacs JT. Genetic instability and the acquisition
of metastatic ability by rat mammary cancer cells following v-H-ras oncogene
transfection. Cancer Res 1990; 50: 6349-57.
[19] Lichter P, Cremer T, Tang CJ, Watkins PC, Manuelidis L, Ward DC.
Rapid detection of human chromosome 21 aberrations by in situ hybridization.
Proc Natl Acad Sci U S A 1988; 85: 9664-8.
[20] Isaacs JT, Hukku B. Nonrandom involvement of chromosome 4 in the
progression of rat prostatic cancer. Prostate 1988; 13: 165-88.
[21] Wooster R, Bignell G, Lancaster J, Swift S, Seal S, Mangion J,
et al. Identification of the breast cancer susceptibility gene BRCA2.
Nature 1995; 378: 789-92.
[22] Lee WH, Bookstein R, Hong F, Young LJ, Shew JY, Lee EY. Human retinoblastoma
susceptibility gene: cloning, identification, and sequence. Science 1987;
235: 1394-9.
[23] Ichikawa T, Nihei N, Suzuki H, Oshimura M, Emi M, Nakamura Y,
et al. Suppression of metastasis of rat prostatic cancer by introducing
human chromosome 8. Cancer Res 1994; 54: 2299-302.
[24] Rinker-Schaeffer CW, Hawkins AL, Ru N, Dong J, Stoica G, Griffin
CA, et al. Differential suppression of mammary and prostate cancer
metastasis by human chromosomes 17 and 11. Cancer Res 1994; 54: 6249-56.
[25] Nihei N, Ichikawa T, Kawana Y, Kuramochi H, Kugo H, Oshimura M,
et al. Localization of metastasis suppressor gene(s) for rat prostatic
cancer to the long arm of human chromosome 10. Genes Chromosomes Cancer
1995; 14: 112-9.
[26] Ichikawa T, Nihei N, Kuramochi H, Kawana Y, Killary AM, Rinker Schaeffer
CW, et al. Metastasis suppressor genes for prostate cancer. Prostate
Suppl 1996; 6: 31-5.
[27] Nihei N, Ichikawa T, Kawana Y, Kuramochi H, Kugoh H, Oshimura M,
et al. Mapping of metastasis suppressor gene(s) for rat prostate cancer
on the short arm of human chromosome 8 by irradiated microcell-mediated
chromosome transfer. Genes Chromosomes Cancer 1996; 17: 260-8.
[28] Chekmareva MA, Hollowell CM, Smith RC, Davis EM, LeBeau MM, Rinker-Schaeffer
CW. Localization of prostate cancer metastasis-suppressor activity on
human chromosome 17. Prostate 1997; 33: 271-80.
[29] Luu HH, Zagaja GP, Dubauskas Z, Chen SL, Smith RC, Watabe K, et
al. Identification of a novel metastasis-suppressor region on human
chromosome 12. Cancer Res 1998; 58: 3561-5.
[30] Mashimo T, Watabe M, Cuthbert AP, Newbold RF, Rinker-Schaeffer CW,
Helfer E, et al. Human chromosome 16 suppresses metastasis but
not tumorigenesis in rat prostatic tumor cells. Cancer Res 1998; 58: 4572-6.
[31] Nihei N, Ohta S, Kuramochi H, Kugoh H, Oshimura M, Barrett JC,
et al. Metastasis suppressor gene(s) for rat prostate cancer on the
long arm of human chromosome 7. Genes Chromosomes Cancer 1999; 24: 1-8.
[32] Mashimo T, Goodarzi G, Watabe M, Cuthbert AP, Newbold RF, Pai SK,
et al. Localization of a novel tumor metastasis suppressor region
on the short arm of human chromosome 2. Genes Chromosomes Cancer 2000;
28: 285-93.
[33] Dong JT, Lamb PW, Rinker-Schaeffer CW, Vukanovic J, Ichikawa T, Isaacs
JT, et al. KAI1, a metastasis suppressor gene for prostate cancer
on human chromosome 11p11.2. Science 1995; 268: 884-6.
[34] Yoshida BA, Dubauskas Z, Chekmareva MA, Christiano TR, Stadler WM,
Rinker-Schaeffer CW. Mitogen-activated protein kinase kinase 4/stress-activated
protein/Erk kinase 1 (MKK4/SEK1), a prostate cancer metastasis suppressor
gene encoded by human chromosome 17. Cancer Res 1999; 59: 5483-7.
[35] Kim HL, Griend DJ, Yang X, Benson DA, Dubauskas Z, Yoshida BA,
et al. Mitogen-activated protein kinase kinase 4 metastasis suppressor
gene expression is inversely related to histological pattern in advancing
human prostatic cancers. Cancer Res 2001; 61: 2833-7.
