Animal
models for studying penile hemodynamics
Hiroya Mizusawa1,
Osamu Ishizuka2, Osamu Nishizawa2
1Department of Urology,
National Nagano Hospital, 1-27-21, Midorigaoka, Ueda 386 0022, Japan
2Department of Urology, Shinshu University School of Medicine,
3-1-1, Asahi, Matsumoto 390 8621, Japan
Asian J Androl 2002 Sep; 4: 225-228
Keywords:
erectile dysfunction;
impotence; intracavernous pressure; sexual dysfunction; corpus cavernosum;
electrophysiology
Abstract
Animal models for the study of erectile function
monitoring the changes in intracavernous pressure (ICP) during penile
erection was reviewed. The development of new models using small commercially-available
experimental animals, rats and mice, in the last decade facilitated
in vivo investigation of erectile physiology. The technique enabled
to evaluate even subtle erectile responses by analyzing ICP and systemic
blood pressure. Moreover, the method has been well improved and studies
using conscious animal models without the influence of any drug or anesthesia
are more appropriate in exploring the precise physiological and pharmacological
mechanisms in erection. Also, more natural and physiological sexual arousal
instead of electrical or pharmacological stimulation is desirable in most
of the studies.This article reviewed the development of ICP studies in
rats and mice.
1 Introduction
Penile erection is a hemodynamic
event in the penis. It is the end result of relaxation of the cavernous
tissues that involves both the central nervous system and the local factors.
The contemporary basic concepts of erectile physiology were obtained greatly
from in vivo and in vitro investigations mostly with animals
[1-3].
There are various in vivo
animal models for the study of penile erection. Eckhard reported relevant
involvement of the pelvic nerve on erection in dogs in the latter half
of the 19th century [4]. Historical advances have enabled to measure intracavernous
pressure (ICP), which was performed in the bull by Lewis et al
in 1968 [5]. Later, to investigate the erectile function, several animal
models, including monkeys, dogs and rabbits were developed and used. The
technique for ICP measurement using commercially available small animals,
i.e., rats and mice, was established in the last decade [6-17].
The use of transgenic animals widens the physiological and pharmacological
understanding of erection. The neuroanatomy and physiology of the penis
in rats and mice was also gradually elucidated [6, 18], and contemporary
knowledge and technique on animal experiments have been formed.
ICP measurement represents
a direct investigation of erectile function. It made the objective evaluation
on even subtle erectile responses possible, but also facilitated the physiologic
approach and obtained new understandings on penile erction.
The present review is an attempt to update
the information on the hemodynamics of the penis and to discuss the significance
of monitoring ICP.
2 Hemodynamics of penis during erection
In the flaccid status,
the cavernous tissues are contracted by a dominant sympathetic control
to the arterioles and the cavernous smooth muscles [1,2]. After receiving
sexual stimulation, parasympathetic nerve activity dominates and influences
the local factors and there is an increasing blood flow through the cavernous
artery. During erection, mainly with the parasympathetic effect, the cavernous
tissues are relaxed and the influx of a huge amount of blood induces a
rapid increase in ICP. It may reach a value 10-20 mmHg below the systolic
blood pressure. At this phase, the voluntary or reflexogenic contraction
of the ischiocavernous and bulbocavernous muscles produces the burst peak
pressure, which reaches to well above the arterial blood pressure and
gives the maximal rigidity to the penis. During the detumscence phase,
the cavernous tissues become less relaxed because the attenuated sexual
stimulation decreases the parasympathetic dominance and leads to a relative
enhancement of adrenergic regulation. The smooth muscle tone in the penis
depends on the balance between the contractile and the relaxant factors.
3 Development of ICP monitoring
in small animals
Steers et al
reported in 1988 [7] that electrophysiological techniques were used to
examine the neural activity of the penile nerve in the rat. Later, other
group also described the ICP monitoring in rats of a different strain
upon electrostimulation on the lumbosacral roots. In the rat model, erectile
responses were produced by electrical stimulation following laparotomy
under general anesthesia [8].
Chen et al [9] modified
an anesthetized rat model for the investigation of erectile physiology,
monitoring the hemodynamics in the corpus cavernosum and femoral artery.
Penile erection was induced by intracavernous administration of drugs
and the maximal intracavernous pressure and the duration of increase in
ICP were evalu-ated. The blood pressure and heart rate were also assessed
simultaneously.
The first mouse model monitoring
the ICP was reported by Sezen and Burnett [10] in 2000. Both electrical
stimulation and intracavernous drug administration produced reproducible
ICP increases in an anesthetized animal. Several other authors also reported
the techniques for measuring ICP.
4 Monitoring ICP in anesthetized
rats and mice
4.1 Surgical procedure
One of the basic methods
is described as follows [11]. Male rats were lightly anesthetized with
intraperitoneal pentobarbital, so that the rats breathed spontaneously
during the experiment. For continuous systemic blood pressure measurements,
a heparinized polyethylene catheter was introduced into the femoral artery.
With a midline perineal incision, followed by blunt dissection of the
overlying striated muscles, entrance to the tunica albuginea of the crus
corpus cavernosum was achieved. A fine needle attached to a heparinized
polyethylene catheter was inserted into the crus corpus cavernosum and
the ICP was registered by means of a pressure transducer. For pharmacological
stimulation giving intracavernously, another fine needle should be placed
at the other crus for drug injection.
In mice, the basic procedure
was similar to that in rats except a smaller needle for monitoring ICP
will be used and the catheter for the femoral artery needs to be slightly
stretched to reduce the size, otherwise the internal carotid artery should
be selected. To maintain a good general condition, the use of a blanket
or heating mat is advisable.
4.2 Electrical or pharmacological
stimulation
In general, electrical
stimulation is performed via the cavernous nerve following laparotomy
under general anesthesia. A very important point is to use submaximal
stimulation, both electrically and pharmacologically, in order to correctly
appraise the increase or decrease in ICP [12-14].
4.3 Analysis of ICP
When using electrical
stimulation, the basal ICP (BICP), the peak ICP (PICP), the ratio of PICP/blood
pressure and the slopes of tumescence and detumscence were evaluated (Figure
1). In pharmacological stimulation, the time to the first response,
the number of response, the duration, the BICP, the PICP, the ratio of
PICP/blood pressure and the area under curve were analyzed [6, 13, 14].

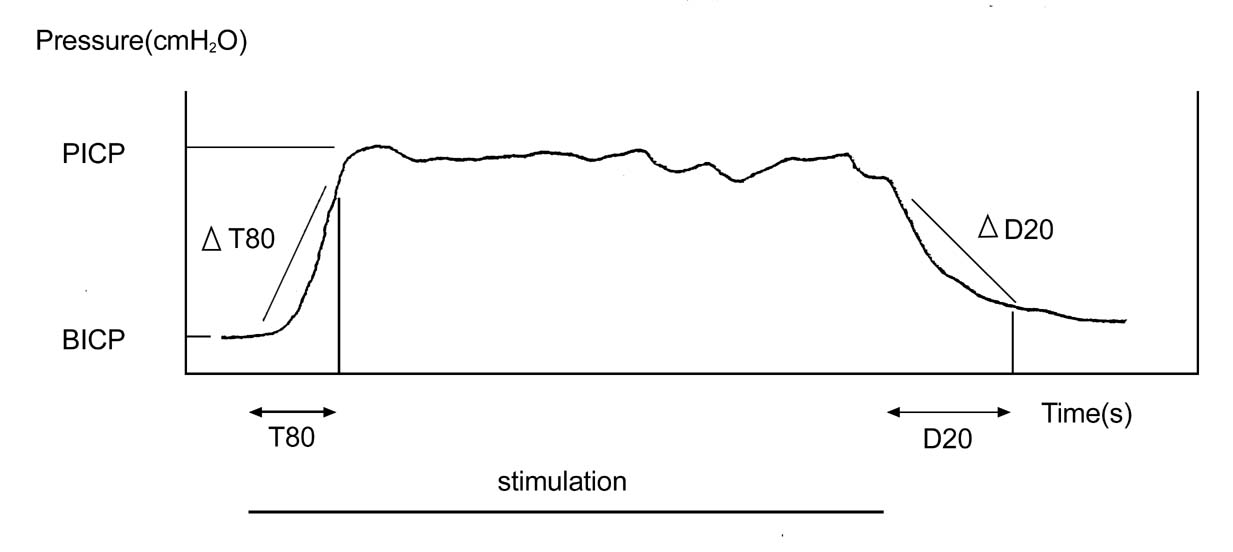

Figure
1. Typical curve showing increase in ICP induced by nerve stimulation.
During stimulation, the time for ICP to reach 80% of maximal increase
(peak ICP - basal ICP) was recorded (T80). At this point, the increase
per second (rT80)
was evaluated. After stimulation, the time for and the rate by which a
decrease to 20 % of maximal pressure occurred (D20 and rD20)
were determined. A bar indicates stimulation period.
5 ICP curves in sexually
stimulated rats and mice
Figure
2 showed the curves of changes in ICP, induced by the administration
of intrathecal or intracere-broventricular oxytocin and a-melanocyte-stimulating
hormone in an anesthetized rat [11]. The drug produced reproducible responses
of ICP increases. The typical ICP response exhibited a fast increase in
pressure up to the peak ICP. In anesthetized animals, it was approximately
60%-80% of the mean blood pressure with pharmacological or electrical
stimulation. At this pressure, frequent rapid changes in the pressure
were observed and then the peak ICP decreased sharply to the previous
basal ICP.

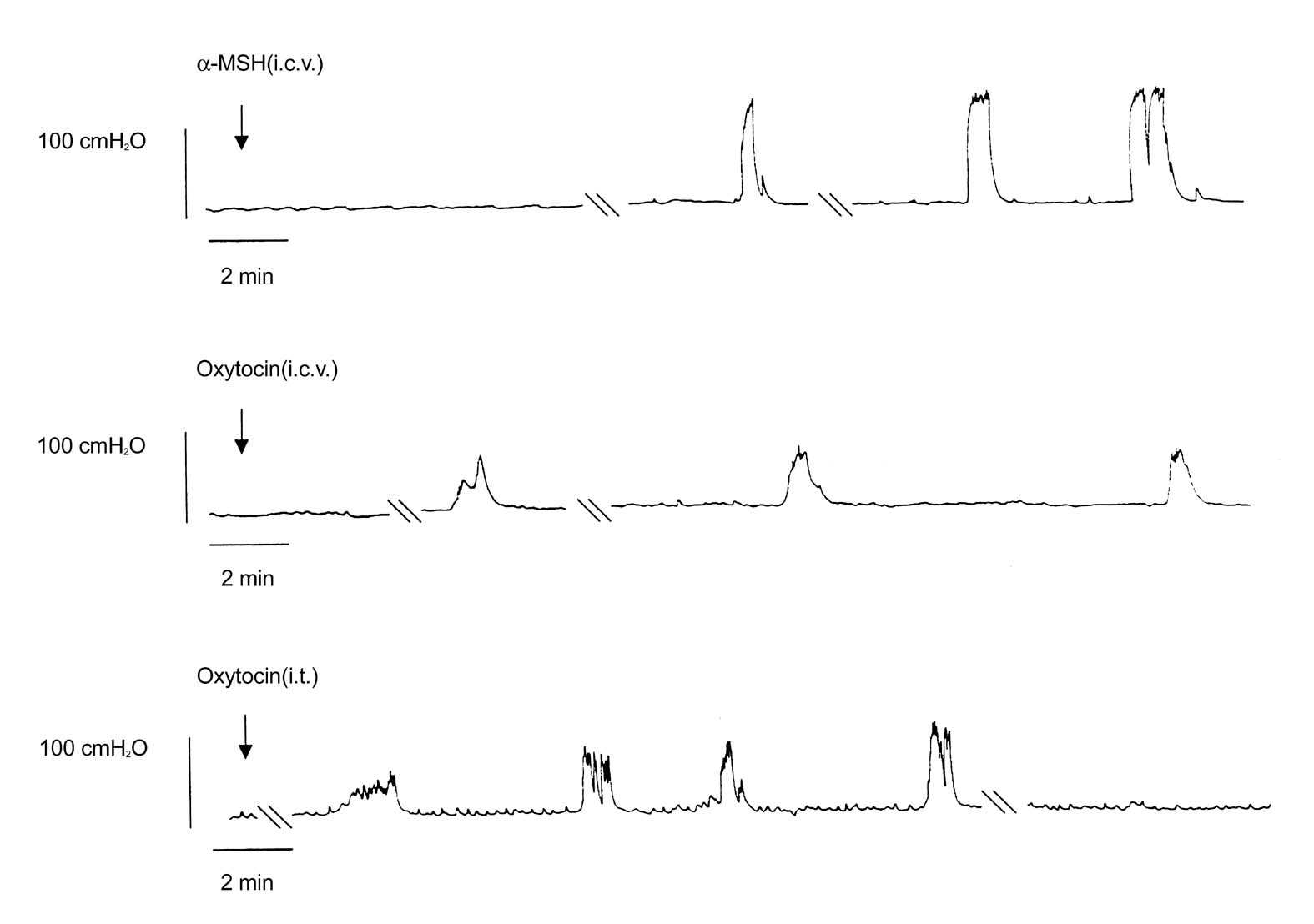

Figure
2. Tracings showing ICP changes induced by icv alpha-MSH and oxytocin
and intrathecal oxytocin in anesthetized rats.
Andersson et al [15] described the
effect of sildenafil on the apomorphine-evoked increase in ICP in the
conscious rat model. A fine catheter was inserted into the corpus cavernoum
and the tubing was brought out subcutaneously to the back. It showed that
the systemic administration of apomorphine induced reproducible ICP increase
with the burst peak pressure by the action of the skeletal muscles. It
was recently reported that apomorphine also elicited the erectile responses
in spinal rat model. Even in anesthetized rats, systemic apomorphine administration
induced increasing ICP in response to the dose for a conscious rat (Figure
3) [13, 14].

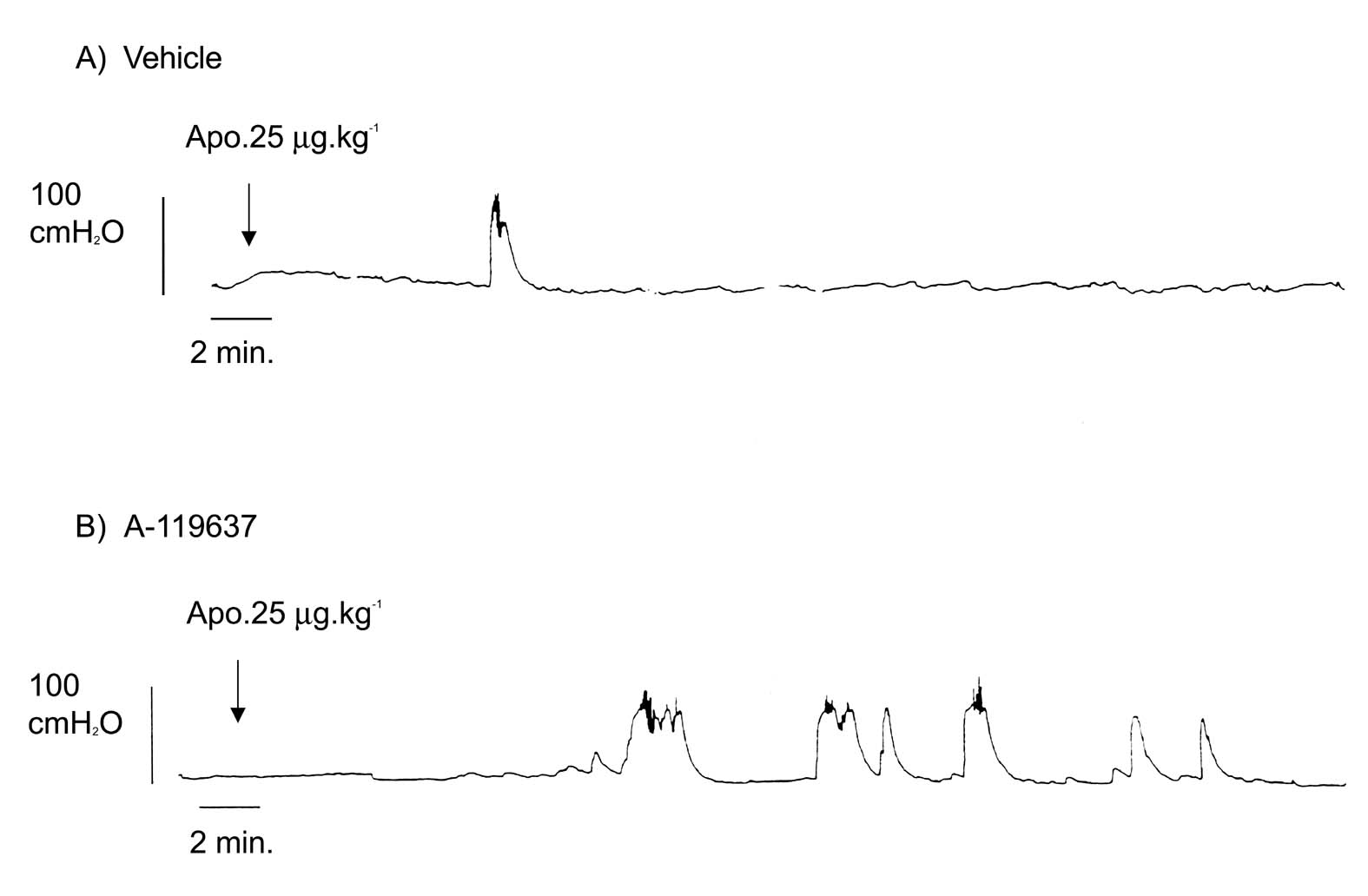

Figure
3. Tracing showing the erectile responses induced by sc administration
of apomorphine.
A) Pretreatment with vehicle
B) Pretreatment with a1D
adrenoceptor antagonist, A-119637
6 In vivo animal
models in the future
If a method of ICP measurement
in transgenic mice is employed, investigations on the mechanism of penile
erection at the molecular level will be expanded. Even without the monitoring
of ICP, some good papers have been published in this field [19, 20].
Mizusawa et al have
reported morphological and functional in vitro and in vivo
characterization of the mouse corpus (Figure
4) [6]. It has been suggested that there are many similarities in
peripheral structure between the humans and rats [18]. Central innervations
and regulation on penile erection in mice should be studied.

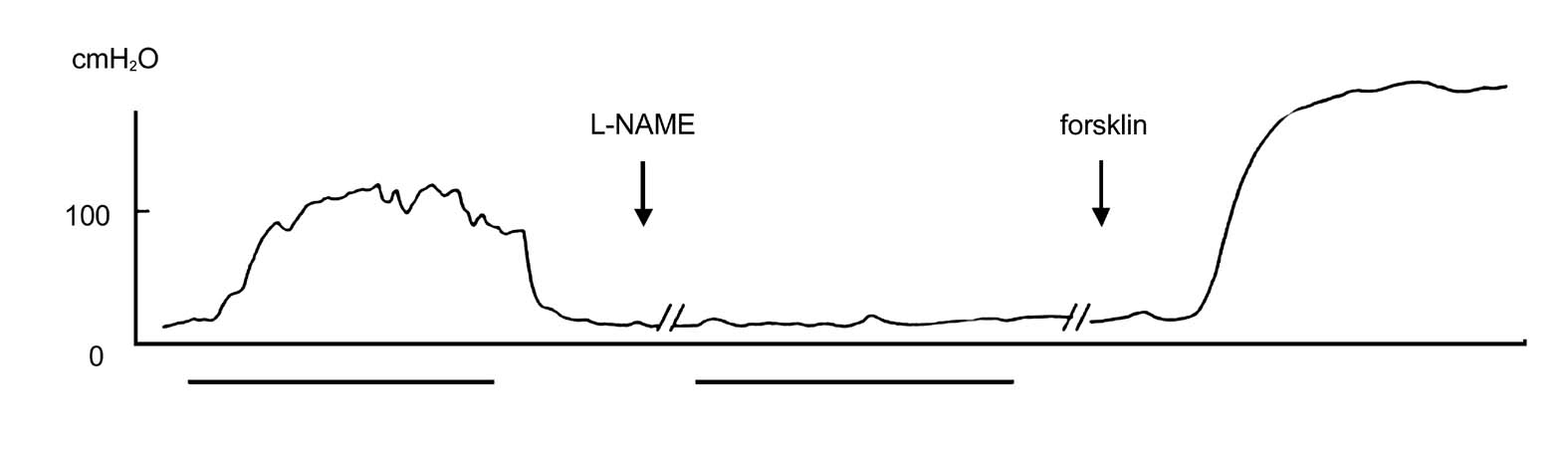

Figure
4. ICP changes in mouse corpus cavernosum in response to cavernous
nerve stimulation. After pretreatment with ip NO synthase inhibitor (L-NAME),
erectile response was abolished. Increase in ICP induced by forskolin,
an adenylyl cyclase activator, was unaffected by L-NAME. Bars indicate
stimulation period.
Recently, with the advances
in the anatomy of the central nervous system in laboratory animals and
in the experimental techniques, drug stimulation was performed not only
intracavernously, but also intrathecally or intracerebroventricularly.
In addition, electrical and pharmacological stimulation began o focus
on narrower areas in the brain such as the medial preoptic area and the
paraventricular nucleus of hypothalamus [21, 22]. It facilitates researches
on physiological and pharmacological involvement in the brain and the
spinal cord.
Most experiments have been
performed under general anesthesia or sedation, while a conscious model
is much preferable to evaluate the physiological status without drug intervention.
Bernabe et al [23] reported a new integrative approach based on
telemetric recording in the rats. As mentioned above, a conscious model
without a special device is more desirable.
To investigate the sexual
physiology, another point for consideration is the natural stimulation
by a female animal. If it is possible to monitor ICP and blood pressure
simultaneously by non-contact erection, this could be an ideal solution.
7 Conclusion
We reviewed the in vivo
animal models for the study of erectile function from a viewpoint
of monitoring changes in ICP. The technique enabled to evaluate even subtle
erectile responses by analyzing ICP and systemic blood pressure. The development
of the new models using small commercially-available animals such as rats
and mice facilitated in vivo investigation. Future development
in employing conscious animal models without any drug intervention seems
to be advisable. Also, natural and physiological sexual arousal instead
of electrical or pharmacological stimulation is more desirable.
References
[1]
Saenz de Tejada I, Gonzales Cadavid N, Heaton J, Hedlund H, Nehra A, Pickard
RS, et al. Anatomy, physiology and pathophysiology of erectile
function. In: Jardin A, Wagner G, editors. 1st international consultation
on erectile dysfunction. Plymouth: Plymbridge Distributors Ltd; 2000.
p 65-102.
[2] Andersson K-E, Wagner G. Physiology of penile erection. Physiol Rev
1995; 75: 191-236.
[3] Andersson K-E, Burnett AL, Chen KK, Christ GJ, Rampin O, Stief C.
Current research and future therapies. In: Jardin A, Wagner G, editors.
1st international consultation on erectile dysfunction., Plymouth: Plymbridge
Distributors Ltd; 2000. p139-47.
[4] Burnett AL, Wesselmann U. History of the neurobiology of the pelvis.
Urology 1999; 53: 1082-9.
[5] Lewis JE, Walker DF, Beckett SD, Vachon RI. Blood pressure within
the corpus cavernosum penis of the bull. J Reprod Fertil 1968; 17: 155-6.
[6] Mizusawa H, Hedlund P, Haakansson A, Alm P, Andersson KE. Morphological
and functional in vitro and in vivo characterization of
the mouse corpus cavernosum. Br J Pharmacol 2001; 132: 1333-41.
[7] Steers WD, Mallory B, de Groat WC. Electrophysiological study of neural
activity in penile nerve of the rat. Am J Phyisiol 1988; 254: 989-1000.
[8] Martinez-Pineiro L, Trigo-Rocha F, Hsu GL, Lue TF. Response of bladder,
urethral and intracavernous pressure to ventral lumbosacral root stimulation
in Sprague Dawley and Wister rats. J Urol 1992; 148: 925-9.
[9] Chen K-K, Chan JYH, Chang LS, Chen M-T, Chan SHH. Intracavernous pressure
as an experimental index in a rat model for the evaluation of penile erection.
J Urol 1992; 147: 1124-8.
[10] Sezen SF, Burnett AL. Intracavernosal pressure monitoring in mice:
Responses to electrical stimulation of the cavernous nerve and to intracavernosal
drug administration. J Androl 2000; 21: 311-5.
[11] Mizusawa H, Hedlund P, Andersson KE. Alpha-MSH and oxytocin induced
penile erection, and intracavernous pressure increases in the rat. J Urol
2002; 167: 757-60.
[12] Sironi G, Colombo D, Poggesi E, Leonardi A, Testa R, Rampin O,
et al. Effects of intracavernous administration of selective antagonists
of a1pha-adrenoceptor subtypes on erectin in anesthetized rats and dogs.
J Pharmacol Exp Ther 2000; 292: 974-81.
[13] Mizusawa H, Hedlund P, Brioni JD, Sullivan JP, Andersson KE. Nitric
oxide independent activateion of guanylate cyclase by YC-1 causes erectile
responses in the rat. J Urol 2002; 167: 2276-81.
[14] Mizusawa H, Hedlund P, Sjunnesson J, Brioni JD, Sullivan JP, Andersson
KE. Enhancement of apomorphine-induced penile erection in the rat by a
selective alpha (1D) -adrenoceptor antagonist. Br J Pharmacol 2002;
136: 701-8.
[15] Andersson K-E, Gemalmaz H, Waldeck K, Chapman TN, Tuttle JB, Steers
WD. The effect of sildenafil on apomorphine-evoked increases in intracavernous
pressure in the awake rat. J Urol 1999; 161: 1707-12.
[16] Giuliano F, Bernabe J, Jardin A, Rousseau JP. Antierectile role of
the sympathetic nervous system in rats. J Urol 1993; 150: 519-24.
[17] Ishizuka O, Gu BJ, Nishizawa O, Mizusawa H, Andersson KE. Effect
of apomorphine on intracavernous pressure and blood pressure in conscious,
spinalized rats. Int J Impot Res 2002; 14: 128-32.
[18]
Hedlund P, Alm P, Andersson K-E. NO synthase in cholinergic nerves and
NO-induced relaxation in the rat isolated corpus cavernosum. Br J Pharmacol
1999; 126: 349-60.
[19]
Hedlund P, Aszodi A, Pfeifer A, AlmP, Hofmann F, Ahmad M, et al.
Erectile dysfunciton in cyclic GNP-dependent kinase 1-deficient mice.
Proc Natl Acad Sci USA 2000; 97: 2349-54.
[20] Burnett AL, Nelson RJ, Calvin DC, Liu JX, Demas GE, Klein SL, et
al. Nitric oxide-dependent penile erection in mice lacking neuronal
nitric oxide synthase. Mol Med 1996; 2: 288-96.
[21] Giuliano F, Bernabe J, Brown K, Droupy S, Benoit G, Rampin O. Erectile
response to hypothalamic stimulation in rats: role of peripheral nerves.
Am J Physiol 1997; 273: R1990-7.
[22] Sato Y, Christ GJ. Differential ICP responses elicited by electrical
stimulationof medial preoptic area. Am J Physiol 2000; 278: H964-70.
[23] Bernabe J, Rampin O, Sachs BD, Giuliano F. Intracavernous pressure
during erection in rats: an integrative approach based on teletric recording.
Am J Physiol 1999; 276: R441-9.
[24] Manzo J, Cruz MR, Hernandez ME, Pacheco P, Sachs BD. Regulation of
noncontact erection in rats by gonadal steroids. Horm.Behav 1999; 35:
264-70.
home
Correspondence
to: Osamu Ishizuka, M.D., Ph.D., Department of Urology, Shinshu University
School of Medicine, 3-1-1 Asahi, Matsumoto 390-8621, Japan.
Tel: +81-263-37 2661, Fax: +81-263-37 3082
E-mail: ishizuk@hsp.md.shinshu-u.ac.jp
Received 2002-08-21 Accepted 2002-09-05
|
