Sperm
immobilization activity of Allium sativum L. and other plant extracts
Kausiki Chakrabarti, Sulagna
Pal, Asok K. Bhattacharyya
Reproductive Biology Laboratory,
Department of Biochemistry, University of Calcutta, Calcutta-700 019,
India
Asian
J Androl 2003 Jun; 5: 131-135
Keywords:
Allium sativum; plant extracts; sperm; immobilization; farm animals;
ram; human; spermicidal agents; thermostability
Abstract
Aim: To
identify possible spermicidal agents through screening a number of edible
medicinal plants with antimicrobial activity. Methods: Initial
screening was made on the basis of ram cauda epididymal sperm immobilization
immediately after addition of extracts. The most potent extract was selected
and was evaluated on both ram and human spermatozoa. To unravel its mode
of action several sperm functional tests were carried out, namely viability
of cells, hypo-osmotic swelling test for membrane integrity and assays
of membrane-bound enzyme 5?nucleotidase and acrosomal marker enzyme acrosin.
Results: The crude aqueous extract of the bulb of Allium sativum
L. showed the most promising results by instant immobilization of the
ram epididymal sperm at 0.25 g/mL and human ejaculated sperm at 0.5 g/mL.
Sperm immobilizing effects were irreversible and the factor of the extract
responsible for immobilization was thermostable up to 90 .
On boiling at 100 for
10 minutes, this activity was markedly reduced. Moreover, this extract
was able to cause aggregation of ram sperms into small clusters after
30 minutes of incubation at 37 .
However this property was not found in human spermatozoa. More than 50
% reduction in sperm viability and hypo-osmotic swelling occurred in treated
sperm as compared with the controls, indicating the possibility of plasma
membrane disintegration which was further supported by the significant
reduction in the activity of membrane bound 5?nucleotidase and acrosomal
acrosin. Conclusion: The crude aqueous extract of A. sativum
bulb possesses spermicidal activity in vitro.
1 Introduction
There are many Indian medicinal plants, which
were reported to possess antifertility property; they acted either by
preventing implantation or by suppressing spermatogenesis [1, 2]. The
most potent spermicidal agent presently available in the market was a
formulation of nonoxynol-9, however the product had been observed to cause
inflammation and genital ulceration and thereby increased the risk of
HIV-1 infection on repeated use [3, 4]. On the other hand, gossypol, a
seed extract of Chinese cotton plant Gossypium herbaceum, was studied
extensively but the programme was discontinued due to its side effects,
mainly hypokalaemia [5]. Considering these problems, the present investigation
had been carried out on screening a number of edible medicinal plants,
namely Allium sativum (family Lilliaceae), Zingiber officinale
(Zingiberaceae), Curcuma longa (Zingi-beraceae),
Curcuma amada (Zingiberaceae), Allium cepa (Lilliaceae)
and so forth at an aim to identify active extracts for the future development
of herbal spermicidal agents.
2 Materials and methods
2.1 Test materials
Ram testes were obtained
from slaughterhouse in the local market and human ejaculates, from the
Scientific Clinical Research Laboratory Pvt. Ltd. (Kolkata, India). Plant
materials were collected from the local market. a-N-benzoyl-L-arginine
ethyl ester (BAEE), HCl and adenosine 5-monophosphate sodium salt were
purchased from Sigma (St.Louis, USA) and other chemicals, from E-merck
(Germany).
2.2 Preparation of sperm
suspension
For ram sample, the
cauda portion of epididymes was isolated and minced in 0.9 % saline solution
(pH 7.5) and filtered through a piece of cheese cloth to get sperm suspension.
For human sample, ejaculates (n=10) from normal subjects after
72 h~96 h of sexual abstinence were subjected to routine semen analysis
following liquefaction at 37 .
Sperm count above 100 million/mL and viability above 60 % with normal
morpho-logy, rapid and progressive motility was employed for the tests.
2.3 Preparation of plant
extract
The fresh plant materials,
Allium sativum bulb, Zingiber officinale stem, Curcuma
longa stem, Curcuma amada stem and Allium cepa bulb,
were homogenized separately with the help of a mortar in physiological
saline (pH 7.4). Homogenates were centrifuged at 10,000 g
at 4
for 30 minutes. The pellet was discarded and the supernatant was preserved
at 4 for experimental
purposes.
2.4 Immobilization assay
Crude extracts of the
plants and either ram epididymal sperm suspension (100 million/mL~200
million/mL) or human ejaculate (100 million/mL~150 million/mL) were mixed
thoroughly in 1:1 ratio according to a modified method of Waller [6].
A drop of the mixture was placed immediately on a slide and at least five
fields were microscopically observed under high power (400) for assessment
of sperm motility. The mixture was then incubated at 37
for 30 minutes and the above process was repeated.
2.5 EC50 determination
The effective concentration
that causes 50 % immobilization of highly motile cells (EC50) [7] was
determined by different dilutions of garlic extract using physiological
saline as the dilution medium. Sperm suspension and garlic extract were
mixed in 1:1 ratio. The concentrations ranged from 0.25 g/mL to 0.8 mg/mL
for ram epididymal sperm and 0.5 g/mL to 0.11 g/mL for human ejaculated
sperm (Figure 2).
2.6 Nonspecific aggregation
estimation
Different concentrations
of Allium sativum (ranging from 0.25 g/mL to 0.8 mg/mL) were treated
with ram sperm suspension in 1:1 ratio and kept at 37 C for 1 h. Then
from the bottom of the microcentrifuge tube, one drop of the sedimented
sperm was placed on a slide and the percent aggregation was examined microscopically
under 400 magnification. Considering that the non-aggregated spermatozoa
will remain in the supernatant, the latter was collected and the turbidity
determined spectrophotometrically [8] at 545 nm. This experiment was not
performed with human ejaculates, as human sperm did not show any sign
of aggregation after incubation with the plant extract.
2.7 Extract stability evaluation
Crude extract was heated
in water bath at different temperatures (30 ,
50 , 70 ,
90 and 100
) and aliquot
was taken, cooled and centrifuged. The supernatant and the pellet were
kept separately. The supernatant was tested for its effect on the sperm
motility and the pellet was similarly tested after resuspended in physiological
saline. The crude extract was lyophilized and the residue resuspended
in physiological saline. It was then centrifuged to discard undissolved
matter, if any. The clear supernatant was again tested microscopically
as described earlier and the loss of activity was re-corded.
2.8 Sperm revival test
After completion of
the experiment, the spermatozoa were washed twice in physiological saline
and incubated once again in the same medium free of plant extract at 37
for 30 minutes
to observe the reversal of sperm motility.
2.9 Assessment of plasma
membrane integrity
Sperm viability and
hypo-osmotic swelling (HOS) tests were done according to WHO [9], Eliasson
& Treichl [10] and Jeyendran et al. [11] for assessing plasma
membrane functional integrity. Ram sperm suspension (100 million/mL~200
million/mL) and human ejaculated sperm (100 million/mL~150 million/mL)
were mixed separately with Allium sativum extract at the minimum
effective concentration i.e., 0.25 g/mL and 0.5 g/mL, respectively at
a ratio of 1:1 and incubated for 30 min at 37 .
Similarly, sperm samples in saline served as the controls. For viability
assessment one drop each of 1 % aqueous solution of eosin Y and of 10
% aqueous solution of nigrosin was placed in a microcentrifuge tube. A
drop of well mixed sperm sample was added to it and mixed thoroughly.
The mixture was dropped onto a glass slide and observed under 400 magnification.
For HOS 0.1 mL of aliquot was taken from each of the treated and control
sample, mixed thoroughly with 1mL of HOS medium (1.47 % fructose and 2.7
% sodium citrate at 1:1 ratio), incubated for 30 minutes at 37
and the curling tails were examined under phase contrast microscope using
100 magnification.
The activity of 5-nucleotidase
was determined by measuring the rate of release of inorganic phosphate
from adenosine 5-monophosphate according to Heppel and Hilmoe [12] with
a minor modification in substrate concentration as standardized in our
laboratory. After incubating the sperm suspension with the plant extract,
the sperm pellet was collected by centrifugation at 3,000 g at 37 ,
washed twice in 0.9 % saline and then suspended in 0.1 mol/L Tris-HCl
buffer (pH 8.5) with each reaction system containing (100~200) million
sperma-tozoa. An aliquot of 0.1mL suspension of sperm was added to 0.9
mL of buffered substrate containing 3 mmol/L adenosine 5-monophosphate
and 50 mmol/L MgCl2 dissolved in 0.1 mol/L Tris-HCl buffer. The tubes
were incubated at 37
for 30 minutes and 0.5 mL 20 % TCA (0 ~4
) was added
to the mixture to stop the reaction. The mixture was then centrifuged
at 10,000 g at 4 .
The pellet was discarded and the supernatant was kept for phosphate estimation
[13]. The activity of 5-nucleotidase was expressed in terms of g of
phosphate released.(hour.108 cells)-1.
2.10 Evaluation of acrosomal
status
The most widely studied
acrosomal enzyme is the acrosin that has been shown to be associated with
acrosomes of all mammalian spermatozoa and the highest substrate specificity
was obtained with BAEE. The pellets were extracted with 3 mmol/L HCl at
pH 3 and the enzyme activity was measured according to Bhatta-charyya,
et al. [14, 15] following the hydrolysis of 0.5 mmol/L BAEE dissolved
in 0.05 mol/L Tris HCl buffer containing 0.05 mol/L CaCl2 at
pH 8. The activity of acrosin was expressed in terms of mIU.(min.108
cells)-1. One mIU activity means the amount of enzyme, which
caused the hydrolysis of one nanomole of BAEE in one minute at 25 .
2.11 Statistical analysis
Data were expressed
in meanSEM. Students t-test was employed for statistical comparison.
3 Results
3.1 Sperm immobilization
and aggregation
The crude extracts of
all the five plants at 1 g/mL concentration level were able to immobilize
the ram spermatozoa instantly. A. sativum crude extract was the
most effective and a concentration of 0.5 g/mL was able to immobilize
human spermatozoa instantly at 1:1 ratio.
Figure
1 showed the relative efficacy of the extracts at the minimum effective
concentration of 0.25 g/mL and Figure
2, the EC50 values of A. sativum extract with ram
(0.01 g/mL) and human (0.16 g/mL) spermatozoa. The data on nonspecific
aggregation of ram spermatozoa were not presented but it suggested that
the higher the concentration of A. sativum extract, the greater
the percent of sperm aggregation and the less the optical density of isolated
sperm floating in the supernatant.

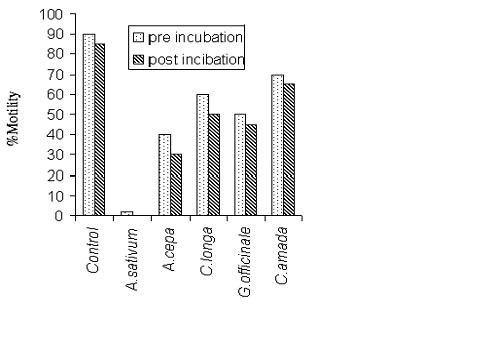

Figure
1: In vitro effect of aqueous extract of five medicinal plant
parts on motility of goat cauda epedidymal spermatozoa at a concentration
of 0.25 g/mL.

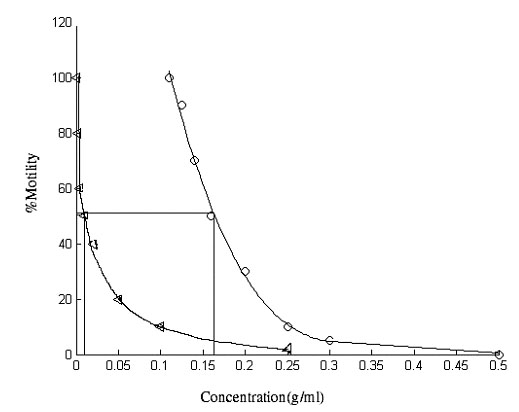

Figure
2: EC50 of A. sativum extract with ram epididymal
sperm (triangles) and human ejaculated sperm (circles).
3.2 Extract stability
The supernatant of A.
sativum showed 100 % immobilization (both with ram and human sperm)
on heating up to 90 ,
but its sperm immobilization activity was reduced to 60 % (ram epididymal
sperm) or 70 % (human sperm) after boiling for 10 minutes at 100 .
The pellet obtained from each fraction, when resuspended in physiological
saline, did not show immobilization activity. Crude extract at room temperature
(23 ~ 26 )
was able to aggregate ram spermatozoa, but on heating (50 ~100
) none of the
aliquots showed this property. After lyophilization of the crude extract,
the sperm immobilization property remained unaltered, but the ram sperm
aggregation property was lost.
3.3 Sperm revival test
None of the spermatozoa,
once immobilized, recovered their motility following removal of plant
extracts and 30 minutes incubation with physiological saline.
3.4 Serm membrane integrity
The significant decrease in sperm viability
on treatment with the extract indicated the spermicidal property of A.
sativum crude preparation. Ram as well as human spermatozoa showed
typical morphological changes when subjected to hypo-osmotic shock. These
changes were clearly visible by phase contrast microscopy. In our experiment,
the controls showed the maximum amount of tail curling, while in A.
sativum extract treated sperma-tozoa, tail curling was significantly
reduced (P<0.01), indicating the impairment of functional integrity
of the plasma membrane. From Table 1, it could be seen that the release
of inorganic phosphate was the maximum in the controls and was significantly
reduced in the treated group, indicating inactivation and/or maximum expulsion
of the enzyme 5-nucleotidase following A. sativum extract treatment
and thereby hampering the breakdown of the substrate by the enzyme
which is known to be plasma membrane associated. A similar result was
obtained with acrosin, indicating the vesiculation or perforation of membrane
system.
Table 1. Effect of A. sativum extract
in vitro (n=10). All values are statistically significant
(P<0.01) in comparison to controls. Sp.Sus. = Sperm suspension;
P.Ext. = Plant Extract.
|
Ram
cauda epididymal sperm
|
Human
ejaculated sperm |
Control
Sp.Sus: Saline
1:01 |
Treated
Semen: P.Ext.
1:01 |
Control
Semen: Saline
1:01 |
Treated
Semen: P.Ext.
1:01 |
Viability
(%) |
77.005.66
|
21.334.72
|
67.506.09
|
32.002.92
|
HOS
(%) |
67.835.49
|
19.434.50
|
68.003.00
|
18.005.50
|
5'-nucleotidase
[mg
Pi released .(hour.108cells)-1]
|
6.541.14
|
1.640.62
|
6.521.37
|
3.240.63
|
Acrosin
[mIU .(hour.108cells)-1] |
280.2032.60
|
160.2519.30
|
331.2576.60
|
120.3518.25
|
4 Discussion
Farnsworth and Waller [16]
have screened a large number of plants for spermicidal property and reported
that the majority of plant-derived spermicides were triterpene saponins
of several structural types, flavonoids and phenol compounds. The saponins
of Cyclomen persicum, Primula vulgaris and Gypsophyla
paniculata have been reported to cause almost instant immobilization
of human spermatozoa within 20 seconds [17]. Carica papaya seed
extract has also been shown to possess sperm immobilizing effect in human
spermatozoa in vitro [18]. The purified fraction from the aqueous
crude extract of Echeveria gibbiflora had sperm immobilizing activity
as well as strong agglutinating property in guinea-pig spermatozoa [19].
The present paper here reported
for the first time the sperm immobilization activity of the aqueous homogenate
of five edible plant parts having antimicrobial activities [20]. A.
sativum extract was shown to be the most active. It was indicated
previously that allitridum, an active principle of A. sativum,
showed spermicidal effect on rat and hamster spermatozoa [21]. The present
study pointed out that at a concentration of 0.5 g/mL, A. sativum
crude aqueous extract was able to immobilize human spermatozoa instantly.
The extract of A. sativum contained certain sperm agglutination
factor as it agglutinated the ram epididymal spermatozoa, however, the
human sperm in the presence of seminal fluid were not agglutinated.
Most of plant spermicidal
compounds act on the sperm surface, disrupting the plasma membrane [16].
The currently used active principle of vaginal spermicide, nonoxynol-9,
acted in a similar manner. It produced disruption of lipids within the
sperm membrane, par-ticularly, on the acrosome and mid-piece causing rapid
loss of sperm motility [22, 23]. Inhibition of sperm specific enzymes,
as acrosin and hyaluronidase, which play important roles in the fertilization
process, by plant derivatives has also been reported [16].
In the present study the
damage to the membrane architecture was evidenced by the significant reduction
in sperm viability and tail curling and a marked decrease in the 5-nucleotidase
and acrosin activities in the treated group. A property of the cell membrane
was its ability to permit the transport of molecules selectively. This
is not only essential for the maintenance of sperm motility, but also
for the induction of the acrosome reaction and possibly other key events
related to fertilization [11]. When exposed to hypo-osmotic conditions,
water will enter the spermatozoon in an attempt to reach osmotic equilibrium,
and as a result the sperm volume increased and plasma membrane bulges.
This ability of spermatozoa implied intact membrane function. On incubation
of motile sperm with A. sativum extract this general property of
the plasma membrane was lost, and moreover, the plasma membrane marker
enzyme 5?nucleotidase was also getting released, possibly due to disstabilization
of plasma membrane. The loss of acrosin from the acrosomal structure also
indicated the damage of at least the outer acrosomal membrane with plant
extract treatment. What we have attempted to show here, however, was that
aqueous extract of very commonly used edible bulbs of A. sativum
possess a potent sperm immobilizing/ spermicidal factor which is thermostable
up to 90 . The
mode of action appeared to involve the disruption of membrane architecture
leading to the release of membrane associated key molecules, thereby causing
impairment of functional competence of the cells.
Acknowledgements
The work has
been done under partial financial support of Indian Council of Medical
Research, New Delhi and University of Calcutta. Authors are thankful to
Dr. S. K. Datta (Scientific Clinical Research Laboratory Pvt.Ltd. Kolkata.)
for supplying human samples.
References
[1] Chaudhury RR. Plants
with possible antifertility activity. Published by Indian Council of Medical
Research 1966; Special Report Series No. 55.
[2] Verma PK, Sharma A, Mathur A, Sharma P, Gupta RS, Joshi SC, et
al. Effect of Sarcostemma acidum stem extract on spermatogenesis
in male albino rats. Asian J Androl 2002; 4: 43-7.
[3] Weir SS, Roddy RE, Zekeng L, Feldblum PJ. Nonoxynol-9 use, genital
ulcers, and HIV infection in a cohort of sex workers. Genitourin Med 1995;
71: 78-81.
[4] Fichorova RN, Tucker LD, Anderson DJ. The molecular basis of nonxynol-9-induced
vaginal inflammation and its possible relevance to human immunodeficiency
virus type 1 trans-mission. J Infect Dis 2001; 184: 418-28.
[5] Qian SZ, Wang ZG. Gossypol: a potential antifertility agent for males.
Annual Rev Pharmacol Toxicol 1984; 24: 329-60.
[6] Waller DP, Zaneveld LJD, Fong HHS. In vitro spermicidal activity
of Gossypol. Contraception 1980; 2: 183-7.
[7] Ratnasooriya WD, Amarasekera AS, Perera NS, Premkumara GA. Sperm antimotility
properties of a seed extract of Abrus precatorius. J Ethnopharmacol 1991;
33: 85-90.
[8] Suttiyotin P, Thwaites CJ. Evaluation of ram semen motility by as
swim up technique. J Reprod Fertil 1993; 97: 339-45.
[9] WHO Laboratory manual for the examination of human semen and sperm
cervical mucus interaction. 4th ed. Cambridge: Cambridge University Press;
1999.
[10] Eliasson R, Treichl L. Supravital staining of human spermatozoa.
Fertil Steril 1971; 22: 134-7.
[11] Jeyendran RS, Van der ven HW, Perez Pelaez M, Carbo BG, Zaneveld
LJD. Development of an assay to assess the functional integrity of the
human sperm membrane and its relationship to other semen characteristics.
J Reprod Fert 1984; 70:219-28.
[12] Heppel LA, Hilmoe RJ. 5?nucleotidase of seminal plasma. Methods in
Enzymology 1964; 2: 547-9.
[13] Chen Jr PS, Toribara TY, Warner H. Micro determination of phosphorus.
Anal Chem 1956; 28: 1756-8.
[14] Bhattacharyya AK, Zaneveld LJD. Release of acrosin and acrosin inhibitor
from human spermatozoa. Fertil Steril 1978; 30: 70-8.
[15] Bhattacharyya AK, Goodpasture JC, Zaneveld LJD. Acrosin of mouse
spermatozoa. Am J Physiol 1979; 237: E40-4.
[16] Farnsworth NR, Waller DP. Current status of plant products reported
to inhibit sperm. In: Zatuchni GI, editor. Research frontiers in fertility
regulation 1982; 2: 1-16.
[17] Primorac M, Sekulovic D, Antonic S. In vitro determination
of the spermicidal activity of plant saponins. Pharmazie 1985; 40: 585.
[18] Lohiya NK, Kothari LK, Manivannan B, Mishra PK, Pathak N. Human sperm
immobilization effect of Carica papaya seed extracts: an in
vitro study. Asian J Androl 2000; 2: 103-9.
[19] Delgado NM. Effects of a purified fraction from Echeveria gibbiflora
aqueous crude extract on guinea-pig spermatozoa. Phytother Res 1999;
13: 46-9.
[20] Pruthi JS. Spices and condiments. Published by the director; National
book trust India 1998.
[21] Qian YX, Shen PJ. Spermicidal effect in vitro by the active
principle of garlic. Contraception 1986; 34: 295-302.
[22] Schill WB, Wolff HH. Ultrastructure of human spermatozoa in the presence
of the spermicide nonoxynol-9. Andrologia 1981; 13: 42-9.
[23] Wilborn WH, Mahn DW, Mcguire JJ. Scanning electron microscopy of
human soermatozoa after incubation with the spermicide nonoxynol-9. Fertil
Steril 1983; 39: 717-9.
home
Correspondence
to: Professor A. K. Bhattacharyya,
Department of Biochemistry, University of Calcutta, 35 Ballygunge Circular
Road, Calcutta 700019, India.
Tel: +91-33-2466 1264, Fax: +91-33-2476 4419
E-mail: ashokbha@cal2.vsnl.net.in
Received 2003-03-12 Accepted 2003-05-09
This
article has been cited by other articles:
|
