Free
radical scavenger effect of rebamipide in sperm processing and cryopreservation
Nam Cheol Park, Hyun Jun Park, Kyeong
Mi Lee, Dong Gil Shin
Department of Urology, College
of Medicine, Pusan National University, Busan 602 739, Korea
Asian
J Androl 2003 Sep; 5: 195-201
Keywords:
male infertility; reactive oxygen species; rebamipide
Abstract
Aim:
To study the effect of rebamipide added to
semen samples and cryoprotectant on reactive oxygen species (ROS) production.
Methods: Semen samples from 30 fertile and healthy volunteers were
collected by masturbation after 2 days ~ 3 days of abstinence. After liquefaction,
the specimens were diluted with sperm wash media to a uniform density
of 20?06/mL. Rebamipide was added to semen samples and cryoprotectant
to a final concentration of 10 µmol/L, 30 µmol/L, 100 µmol/L
or 300 µmol/L. Specimens were incubated at 37
in a 0.5 % CO2
incubator for 1 h or cryopreserved at -196 LN2
for 3 days. The sperm motility and viability and the levels of ROS and
lipid peroxidation of sperm membrance were assessed before and after incubation
and cryopreservation by means of computer assisted semen analyzer, eosin-nigrosin
stain, chemiluminescence and thiobarbituric acid assay, respectively.
Results: The sperm motility was significantly increased after incubation
with 100 µmol/L and 300 µmol/L rebamipide (P<0.05).
After cryopreservation, the sperm motility was significantly decreased
in all concentrations (P<0.05), but the decrease was less with
100 µmol/L and 300 µmol/L rebamipide than that with other
concentrations. The sperm viability showed no significant difference before
and after incubation (P>0.05). The levels of ROS and lipid peroxidation
in semen were significantly decreased in proportion to the concentrations
of rebamipide both after incubation and cryopreservation (P<0.05).
Conclusion: Rebamipide is an effective free radical scavenger
in semen in vitro.
1 Introduction
Reactive oxygen species (ROS)
were detected in 25 % ~ 40 % of the semen of infertile men and in up to
96 % of the semen of patients with spinal cord injuries [1]. Elevated
ROS levels in the ejaculate, one of the main causes of sterility [2],
reduce sperm motility as well as decrease sperm-oocyte fusion capability
in vitro [3].
ROS are the metabolites of
oxygen, such as superoxide anions (O2), hydrogen peroxide (H2O2),
hydroxyl radicals (OH) and hypochlorite radicals (OHCl) [4]. Excessive
ROS in the ejaculate reflects the existence of immature sperm or white
blood cells (WBC) due to inflammation in the seminal tract or lower urinary
tract. ROS can also be generated during sperm preparation, cryopreservation
and other assisted reproductive tech-nologies. For example, sperm become
more fragile due to the oxidative damage caused by new ROS formation or
removal of endogenous antioxidants in seminal plasma during sperm preparation.
The majority of normal cells have various endogenous scavengers, consisting
of enzymatic antioxidants, such as superoxide dismutase, glutathione peroxidase
and catalase [5, 6, 7], and nonenzymatic antioxidants, such as uric acid,
ascorbate and tocopherol [8]. If ROS are produced in levels exceeding
the intrinsic scavenger function of the cell, damage of cell membrane
lipid, protein and nuclear DNA may ensue [9]. The World Health Organization
(WHO) laboratory manual for the examination of human semen considered
the evaluation of ROS levels as an important sperm function test [10].
Though experimental research
has proven that various antioxidants scavenge ROS within the sperm, the
application and utilization of these antioxidants are limited clinically
[11, 12]. In the field of male infertility, there is a growing need to
develop a safe and effective oral antioxidant for the treatment of elevated
ROS levels in semen. Rebamipide is a propionic acid derivative that directly
inhibits the production of superoxide (O2-) and
eliminates ROS in hydroxyl radical (OH) system. It was originally developed
as a drug to treat gastritis and gastric ulcer caused by helicobacter
pylori infection [13]. It also has an indirect scavenger effect by decreasing
the lipid content of the cell membrane and suppressing the activation
of neutrophil and the expression of its adhesion molecule. Therefore we
assume that rebamipide may also possess the same scavenger effect on sperm
(Figure 1).

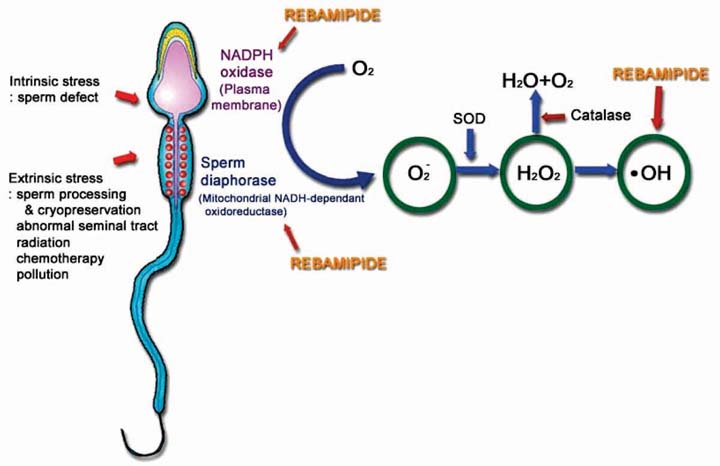

Figure
1. Endogenous reactive oxygen species formation and direct scavenger
effect of rebamipide in sperm.
In the present paper, the sperm motility
and viability and the levels of ROS and lipid peroxidation of cell membrane
were studied during sperm processing, cryopreser-vation and thawing to
evaluate the scavenger effect of various concentrations of rebamipide
in vitro.
2 Materials and methods
The sperm motility and viability
and the levels of ROS and lipid peroxidation of sperm membrance were analyzed
before and after incubation and cryopreservation to estimate the antioxidant
effect of rebamipide by means of computer assisted semen analyzer, eosin-nigrosin
stain, chemiluminescence and thiobarbituric acid assay, respectively.
2.1 Experimental groups
The experimental groups
were classified in reference to various rebamipide concentrations of 0
(control), 10 µmol/L, 30 µmol/L, 100 µmol/L and 300
µmol/L.
2.2 Semen preparation
Semen samples were collected
by masturbation from 30 normozoospermic fertile men (age: 28 years4.5
years) after 2 days ~3 days of abstinence. Samples with abnormal semen
parameters, delayed liquefaction or the presence of white blood cells
or erythrocytes were excluded. Routine semen analysis was performed using
a Makler Chamber (Fertility-Tech, USA) or a computer assisted semen analyzer
(SAIS, Medical Supply Co., Korea) within 1 after liquefaction at 27
room temperature. Normal semen criteria
included a volume of at lease 2 mL, a concentration of 20106/mL
or more, a motility of 50 % or more and normal morphology sperm of 30
% or more [10]. The semen sample was then diluted with the sperm washing
media (Ham's F-10,
Life Technologies, USA) to a uniform sperm density of 20106/mL.
2.3 Cryopreservation and
thawing
The diluted semen was
divided into 0.5 mL aliquots for each group and cryoprotectant was added
at a ratio of 1:1. They were transferred into a cryovial and slowly frozen
for 4 h in a cryomatic cellevator tray (L.A.O. Enterprise, USA). The frozen
samples were then cryopreservated at -196 in
a LN2 tank (Harsco Co., Hamilton. USA) for 3 days and then
thawed slowly at room temperature.
2.4 Evaluation of ROS production
To induce Fenton reaction,
0.25 mL of 0.2 µmol/L ferrous sulfate and 1 µmol/L sodium
ascorbate were added to the specimens [14]. They were then incubated at
37 in a 0.5
% CO2 incubator (Forma Scientific Co., USA) for 1 h.
2.5 Sperm motility
The sperm were classified
according to their motion capacity: Grade 1: static sperm; Grade 2: slow
motion sperm; Grade 3: medium motion sperm and Grade 4: rapid motion sperm.
The percentage of motile sperm was the sum of Grades 3 and 4.
2.6 Sperm viability
Eosin-nigrosin (E-N)
stain solution (50 mL) was added to the same volume of diluted semen in
1mL Eppendorf tube and then mixed vortically for a few seconds. About
50 µL of the mixture was applied on a slide, dried overnight and
mounted with a mixture of malinol and xylene at a ratio of 2:1. The level
of sperm viability was estimated by counting the dead (pink) and live
(white) ones in 100 spermatozoa at 1000.
2.7 ROS production
The level of ROS was
measured using a luminometer (MicroLumat, LB196T, EG/G, Berthold, Germany).
The luminescence level was measured after 25 µL 4 mmol/L luminal
(5-amino-2, 3-dihydro-1,4-phthalazinedione, Wako, Japan) was added into
500 µL of double diluted sperm with a Hepes balanced salt solution/bovine
serum albumin buffer (130 µmol/L NaCl, 4 µmol/L KCl, 1 µmol/L
CaCl2, 14 µmol/L fructose, 10 µmol/L Hepes, pH
8.0 and 1 mg/mL BSA). The maximum luminescence level was measured after
luminol was added for 10 minutes, while the ROS activity was measured
using an analog mode with 1000 times susceptibility in 10 seconds.
2.8 LPO determination
Malondialdehyde is the
end-product of peroxidized fatty acids and a marker of lipid peroxidation
and free radical activity. The sperm samples were centrifuged at 2000
rpm for 10 minutes after incubation (at room temperature) or cryopreservation
and the supernatant was decanted. The sperm pellet was resuspended in
a solution with 750 µL of 1 % phosphoric acid (Kanto Chemicals Co.,
Tokyo, Japan) and 250 µL of 0.6 % TBA (2-tribarbituric acid, Sigma,
St. Louis, USA) using a vortex mixer (Scientific Industries, USA). The
mixture was heated at 100 in
a water bath (Samma Industrial Co., Korea) for 60 minutes, then vortexed.
After being cooled at 4 for
30 minutes in a refrigerator, 1 mL of n-butanol (Junsei Chemical Co.,
Japan) was added, vortexed and centrifuged at 3000 rpm for 25 minutes.
The supernatant was analyzed for absorbance (nmole/mg protein) at 510
nm and 534 nm using a diode array spectrophotometer (Hewlett Packard,
USA).
2.9 Statistical analysis
Repeated measurement and analysis of
variance using Pearson's correlation
coefficient was used for analyzing the data. P<0.05 was considered
statistically significant.
3 Results
3.1 Sperm motility
After incubation, the
sperm motility was significantly higher in all the experimental groups
than that in the controls. Figure
2 shows the motility of 34.4 %, 36.9 %, 41.8 % and 44.5 % in groups
with rebamipide concentrations of 10 µmol/L, 30 µmol/L, 100
µmol/L and 300 µmol/L, res-pectively, compared to 31.9 % in
the controls (P<0.05). After cryopreservation and thawing, the
sperm motility was also higher in all the experimental groups than that
in the controls. Figure 2 shows
the motility of 11.6 %8.1 %, 15.8 %8.0 %, 18.3 %8.6 % and 21.8 %9.4
% in groups with rebamipide concentrations of 10 µmol/L, 30 µmol/L,
100 µmol/L and 300 µmol/L, respectively, compared to 9.3 %6.0
% in the controls (P<0.05). The sperm motility was significantly
higher with rebamipide concentration of 30 µmol/L or more (P<0.05).

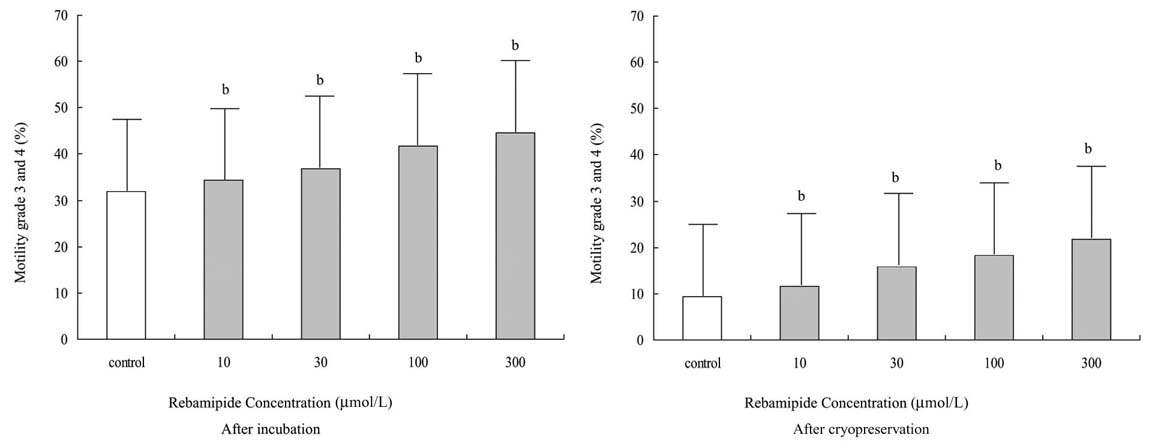

Figure
2. Effect of rebamipide on sperm motility after incubation and cryopreservation.
n = 30, bP<0.05,
compared with control.
3.2 Sperm viability
The sperm viability
after incubation and cryopreser-vation was not significantly different
from each other in the experimental groups (Figure
3) .

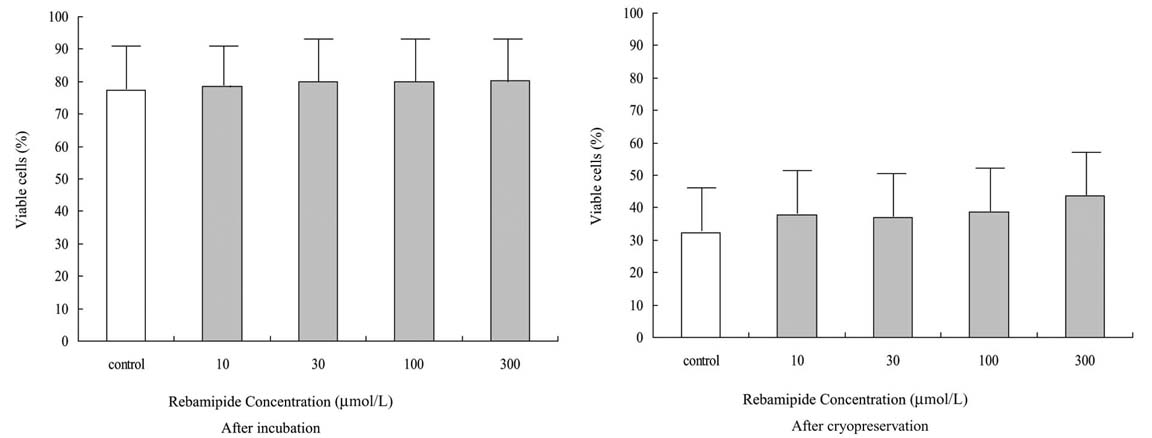

Figure
3. Effect of rebamipide on sperm viability after incubation and cryopreservation.
n = 30.
3.3 ROS
After incubation with
experimentally induced Fenton reaction, the ROS level was significantly
lower in the experimental groups than that in the control groups (P<0.05).
Figure 4 shows ROS levels of
(13.84.03) AU, (13.13.62) AU, (13.04.1) AU and (12.63.90) AU in
groups with rebamipide concentrations of 10 µmol/L, 30 µmol/L,
100 µmol/L and 300 µmol/L, respectively, compared to (14.54.67)
AU in the controls (P<0.05). After cryopreservation and thawing,
the ROS level was significantly lower in all the experimental groups than
that in the control group. Figure
4 shows ROS levels of (12.33.5) AU, (12.43.1) AU, (12.02.9)
AU and (11.62.6) AU with rebamipide concentrations of 10 µmol/L,
30 µmol/L, 100 µmol/L and 300 µmol/L, respectively,
compared to (12.83.2) AU in the control group (P<0.05).

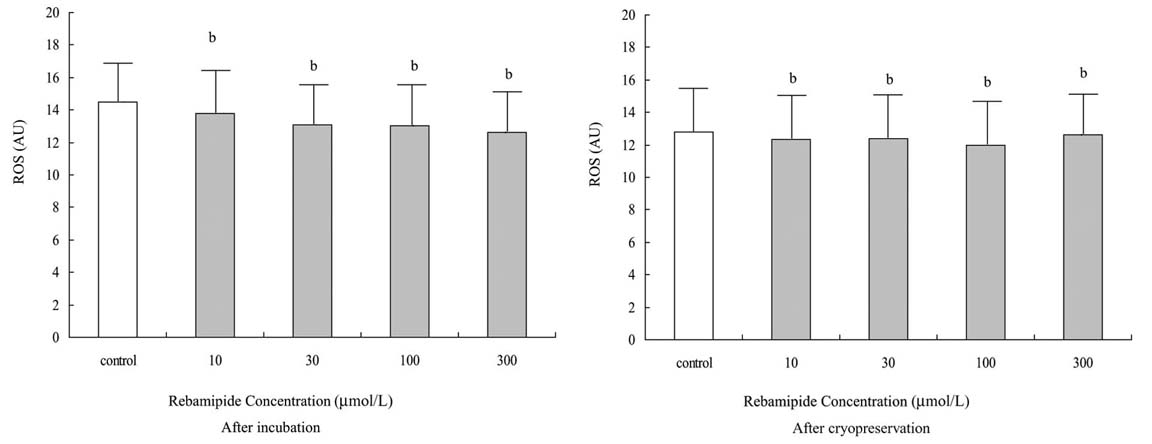

Figure
4. Effect of rebamipide on reactive oxygen species level after incubation
and cryopreservation. n = 30, bP<0.05,
compared with control.

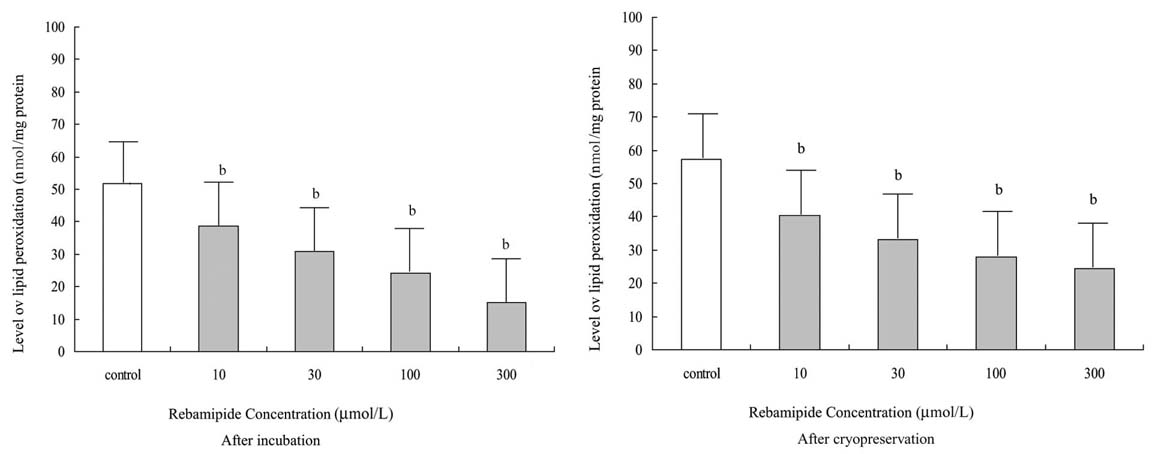

3.4 Lipid peroxidation
After incubation, the
lipid peroxidation was significantly lower in all the experimental groups
than that in the control groups.
Figure 5 shows lipid peroxidase level of (38.615.6) nmol/mg, (30.814.1)
nmol/mg, (24.013.9) nmol/mg and (15.013.4) nmol/mg protein with rebamipide
concentrations of 10 µmol/L, 30 µmol/L, 100 µmol/L and
300 µmol/L, respectively, compared to (51.717.4) nmol/mg protein
in the control group (P<0.05). After cryopreservation and thawing,
the lipid peroxidation was significantly lower in all the experimental
groups than that in the controls.
Figure 5 shows lipid peroxidase level of 40.4 nmol/mg, 33.1 nmol/mg,
27.9 nmol/mg and 24.3 nmol/mg protein with rebamipide concentrations of
10 µmol/L, 30 µmol/L, 100 µmol/L and 300 µmol/L,
respectively, compared to 57.2 nmol/mg protein in the control group (P<0.05).
Figure
5. Effect of rebamipide on lipid peroxidase level after incubation
and cryopreservation. n = 30, bP<0.05,
compared with control.
3.5 ROS and lipid peroxidation
correlation
In the incubation and
cryopreservation groups, the ROS correlated with lipid peroxidation significantly
with correlation coefficients of y =1.4168x +11.269, r = 0.23 (P<0.05)
and y = 4.5105x -18.287, r = 0.30 (P<0.05), respectively
(Figure 6).

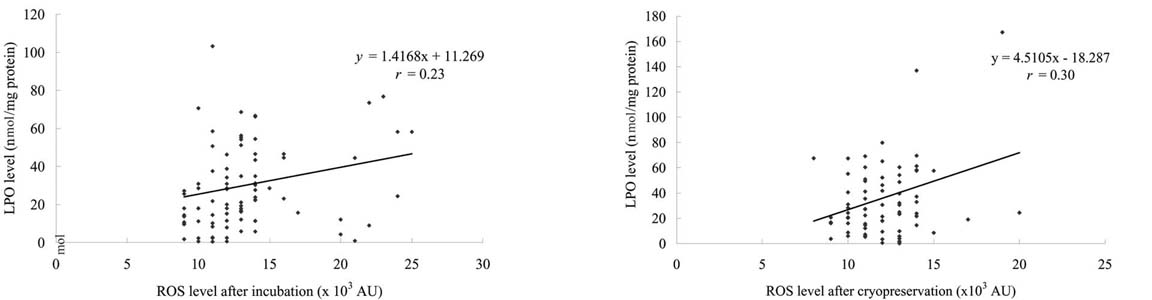

Figure
6. Relationship between reactive oxygen species and lipid peroxidase
level after incubation and cryopreservation.
In the incubation group, the ROS correlated
with lipid peroxidation significantly with a correlation coefficient of
y = -0.2225x +22.67, r = 0.54 (P<0.05,
Figure 7). In the cryopreservation groups, the ROS and lipid peroxidation
had no significant correlation (y = -0.0197x +17.221, r = 0.06;
P>0.05, Figure 7).
This suggested that the sperm damage was not only caused by ROS but also
by other factors, including thermal injury during cryopre-servation and
thawing.

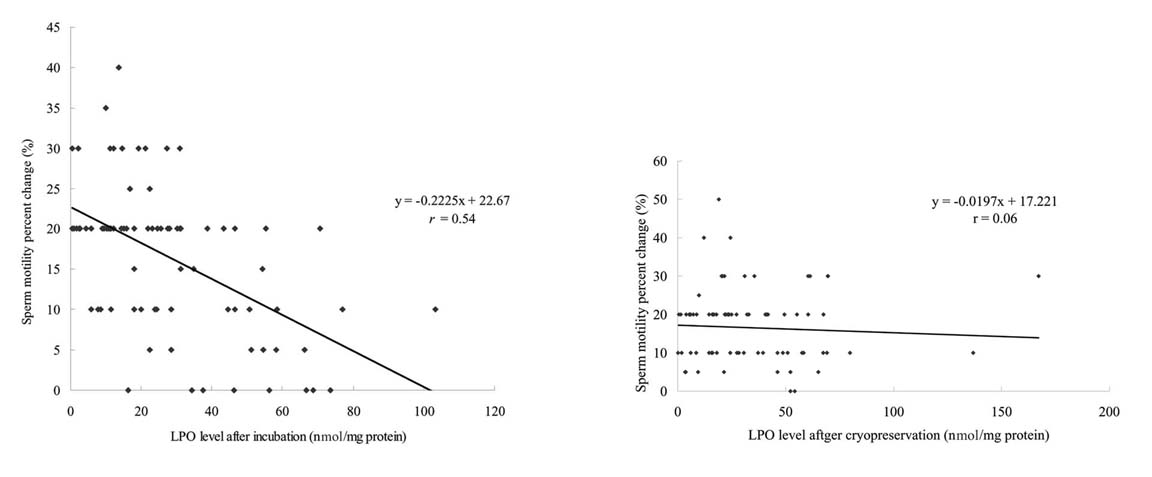

Figure
7. Relationship between sperm motility and lipid peroxidase level
after incubation and cryopreservation
4 Discussion
Though the studies about
ROS began more than one century ago, its physiological role in regard
to male fertility has only been addressed in the past ten years. Iwasaki
and Gagnon [15] reported that in semen, ROS could be detected in 40 %
of infertile men and Agarwal et al. [1] reported that ROS levels
were significantly higher in at least 25 % of infertile men. Park et
al. [16] indicated that ROS levels in the seminal plasma were 60 %
higher in the infertile than in the fertile men. Mazzili et al. [17]
observed that ROS was detected in the seminal plasma in 87 % of infertile
men and 55 % of fertile men, the difference being significant. The sperm
in patients with varicocele and spinal injuries continued to produce ROS
after washing and the sperm motility decreased proportionally with the
levels of the ROS [4]. ROS level in infertile men was higher than that
in fertile men, which correlated strongly with oligozoospermia, asthenospermia
and abnormal sperm morphology.
Spermatozoa are sensitive
to acute stress under aerobic conditions, inducing ROS production from
spermatozoa and seminal white blood cells. The peroxidized metabolites
of fatty acids originated from the ROS-damaged phosphatide of cell membrane
directly damage sperm function and morphology [18, 19]. ROS arise also
from assisted reproductive technology, including sperm washing or preparation.
The influence of ROS on the fertile capacity in men is increasing with
the problems of air pollution, ozone layer destruction, acid rain and
endocrine disruptors [20-22]. High levels of ROS in ejaculate influence
sperm motility, oval adhesion and fertilizing capacity, but certain levels
of ROS are necessary for normal sperm physiology, such as hyperactivation,
capacitation and acrosomal reaction [23].
The endogenous ROS produced
from sperm are induced by sperm deficit, such as immature or damaged sperm
or by external stimulation due to abnormality of the seminal tract, radiation
and chemotherapy. In this study, ROS formation and the following lipid
peroxidation of the cell membranes were experimentally induced by the
Fenton reaction, which entails the addition of ferrous sulfate and sodium
ascorbate or through cryopreservation and thawing [15, 24, 25]. Under
these conditions, endogenous cellular antioxidation caused by NADPH-oxidase
and NADH-dependent oxidoreductase (diaphorase) becomes markedly reduced.
Superoxide is produced as primary metabolite from O2 through aerobic metabolism,
followed by the formation of hydrogen peroxide and hydroxyl radical by
superoxide dismutase and catalase, respectively. In ROS formed in human
cells, including sperm, superoxide is produced not only by oxidative metabolism
in the mitochondria, but also through enzymatic reactions caused by (-cytochrome
enzymes, like xathine oxidase, cytochrome P-450 and other oxidases [12,
25].
Rebamipide is an antioxidant
inhibiting the activation of NADPH-oxidase and sperm-diaphorase in the
human cell. In the present study the ROS production and lipid peroxidation
were significantly inhibited in the experimental group and eventually
resulted in the preservation of sperm motility. But rebamipide did not
apparently maintain sperm viability, suggesting that ROS only influence
sperm function through adequate scavenger action. The lipid peroxidation
of sperm membrane was inversely correlated to sperm motility in the incubation
group, but not in the cryopreservation groups. During the cryopre-servation
and thawing, it appeared that the sperm damage correlated not only with
the ROS level but also with thermal injury, chemical reaction with cryoprotectant
and other factors. Based on the data, rebamipide is known to be an effective
free radical scavenger in semen and may be tried further as an oral antioxidant
in patients with male infertility caused by ROS.
The present study confirmed
that rebamipide was an effective free radical scavenger to inhibit the
endogenous ROS production and the lipid peroxidation of cell membrane
in sperm and to enhance the sperm motility during sperm processing and
cryopreservation.
Acknowledgements
The study was sponsored
by a grant from the Otsuka Pharmaceutical (OPC12759 in Semen).
References
[1] Agarwal A, Ikemoto I,
Loughlin KR. Relationship of sperm parameters with levels of reactive
oxygen species in semen specimens. J Urol 1994; 152: 107-10.
[2] Koksal IT, Usta M, Orhan I, Abbasoglu S, Kadioglu A. Potential role
of reactive oxygen species on testicular pathology associated with infertility.
Asian J Androl 2003; 5: 95-9.
[3] de Lamirande E, Leduc BE, Iwasaki A, Hassouna M, Gagnon C. Increased
reactive oxygen species formation in semen of patients with spinal cord
injury. Fertil Steril 1995; 63: 637-42.
[4] Sharma RK, Agarwal A. Role of reactive oxygen species in male infertility.
J Urol 1996; 48: 835-50.
[5] Chitra KC, Sujatha R, Latchoumycandane C, Mathur PP. Effect of lindane
on antioxidant enzymes in epididymis and epididymal sperm of adult rats.
Asian J Androl 2001; 3: 205-8.
[6] Gangadharan B, Murugan MA, Mathur PP. Effect of methoxychlor on antioxidant
system of goat epididymal sperm in vitro. Asian J Androl 2001;
3: 285-8.
[7] Samanta L, Chainy GB. Response of testicular antioxidant enzymes to
hexachlorocyclohexane is species specific. Asian J Androl 2002; 4: 191-4.
[8] Murugan MA, Gangadharan B, Mathur PP. Antioxidative effect of fullerenol
on goat epididymal spermatozoa. Asian J Androl. 2002; 4: 149-52.
[9] Griveau JF, Le Lannou D. Reactive oxygen species and human spermatozoa:
physiology and pathology. Int J Androl 1997; 20: 61-9.
[10] World Health Organization. WHO Laboratory Manual for the Examination
of Human Semen and Semen-Cervical Mucus Interaction. Cambridge, UK: Cambridge
University Press; 1994.
[11] Lee YJ, Park NC. Effects of antioxidants in freezing and thawing
of sperm. Korean J Urol 1999; 40: 917-20.
[12] Meister A. Glutathione, ascorbate and cellular protection. Cancer
Res 1994; 54 (7 Suppl): 1969s-75s.
[13] Arakawa T, Kobayashi K, Yoshikawa T, Tarnawski A. Reba-mipide: overview
of its mechanisms of action and efficacy in mucosal protection and ulcer
healing. Dig Dis Sci 1998; 43(9 Suppl): 5s-13s.
[14] Aitken RJ, Clarkson JS, Fishel S. Generation of reactive oxygen species,
lipid peroxidation and human sperm function. Biol Reprod 1989; 41: 183-97.
[15] Iwasaki A, Gagnon C. Formation of reactive oxygen species in spermatozoa
of infertile patients. Fertil Steril 1992; 57: 409-16.
[16] Park NC, Namiki M, Takahashi K, Takada S, Kondoh N, Matsumiya K,
et al. Relationship between reactive oxygen species and glutathione
peroxidase in the seminal plasma of infertile men. J Assist Reprod Tech
Androl 1995; 8: 71.
[17] Mazzilli F, Rossi T, Marchesini M, Ronconi C, Dondero F. Superoxide
anion in human semen related to seminal parameters and clinical aspects.
Fertil Steril 1994; 62: 862-8.
[18] Alvarez JG, Touchstone JC, Blasco L, Storey BT. Spontaneous lipid
peroxidation and production of hydrogen peroxide and superoxide in human
spermatozoa. Superoxide dismutase as major enzyme protectant against oxygen
toxicity. J Androl 1987; 8: 338-48.
[19] Check ML, Check JH, Long R. Detrimental effects of cryopre-servation
on the structural and functional integrity of the sperm membrane. Arch
Androl 1991; 27: 155-60.
[20] Aitken RJ, Clarkson JS. Significance of reactive oxygen species and
antooxidants in defining the efficacy of sperm preparation techniques.
J Androl 1988; 9: 367-76.
[21] Holland MK, Alvarez JG, Storey BT. Production of superoxide and activity
of superoxide dismutase in rabbit epididymal spermatozoa. Biol Reprod
1982; 27: 1109-18.
[22] Critser JK, Huse-Benda AR, Aaker DV, Arneson BW, Ball GD. Cryopreservation
of human spermatozoa III. The effect of cryoprotectants on motility. Fertil
Steril 1988; 50: 314-20.
[23] de Lamirande E, Gagnon C. Human sperm hyperactivation in whole semen
and its association with low superoxide scavenging capacity in seminal
plasma. Fertil Steril 1993; 59: 1291-5.
[24] Jones R, Mann T, Sherins R. Peroxidative breakdown of phospholipids
in human spermatozoa, spermicidal properties of fatty acid peroxides,
and protective action of seminal plasma. Fertil Steril 1979; 31: 531-7.
[25] Plante M, de Lamirande E, Gagnon C. Reactive oxygen species released
by activated neutrophils, but not by deficient sperma-tozoa, are sufficient
to affect normal sperm motility. Fertil Steril 1994; 62: 387-93.
home
Correspondence
to: Nam Cheol Park, M.D.,
Ph.D, Department of Urology, College of Medicine, Pusan National University,
1-10, Ami-dong, Seo-Ku, Busan 602-739, Korea.
Tel: +82-51-240 7349, Fax: +82-51-247 5443
E-mail: pnc@pusan.ac.kr
Received 2003-06-05 Accepted 2003-07-23
|
