Estimate of oxygen consumption and intracellular zinc concentration of human spermatozoa in relation to motility Ralf R. Henkel1, Kerstin Defosse1, Hans-Wilhelm Koyro2, Norbert Weissmann3, Wolf-Bernhard Schill1 1Center for Dermatology and Andrology, 2Institute for Plant Ecology, 3Center for Internal Medicine, Justus Liebig University, D-35385 Giessen, Germany Asian J Androl 2003 Mar; 5: 3-8 Keywords:
|
Oxygen
consumption |
Energy
consumption |
Power |
0.24
µmol/106
spermatozoa . 24h |
46.06
mJ/106 spermatozoa .24h |
0.53
µW/106 spermatozoa |
0.28
µmol/106 live |
54.42
mJ/106 live spermatozoa.24h |
0.63
µW/106 live spermatozoa |
0.83
µmol/106 live & |
164.31
mJ/106 motile spermatozoa .24h |
1.90
µW/106 motile spermatozoa |
Table 2. Mean power of human spermatozoa correlated with different motility parameters (n=67).
|
A |
B |
C |
Global
|
r
= 0.259 |
r
= - 0.036 |
r
= - 0.759 |
motility |
P
= 0.035 |
P
= 0.769 |
P
< 0.0001 |
Progressive
|
r
= 0.034 |
r
= - 0.257 |
r
= - 0.768 |
motility |
P
= 0.780 |
P
= 0.037 |
P
< 0.0001 |

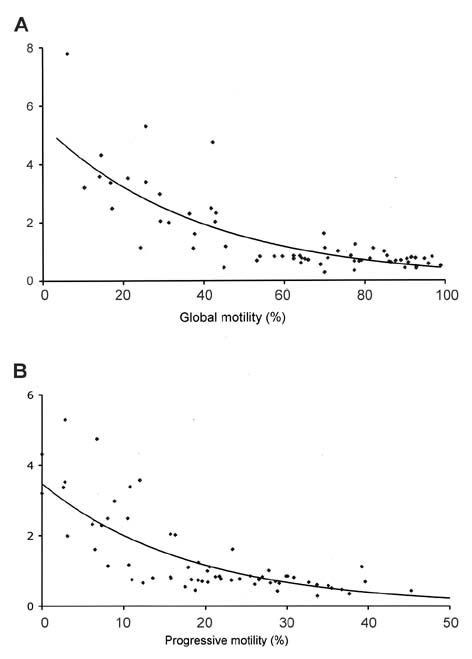

Figure 1. Correlation of global (A) and progressive motility (B) with the power of motile spermatozoa. In both cases, a significant negative relationship can be observed. The calculated curves approach asymptotically a base line value of about 0.5 µW/106 motile spermatozoa. n=67.
The mean concentration of zinc was 71.1 ng/106 spermatozoa (median: 40.41 and range: 1.07~334.75 ng/106 spermatozoa). Significant negative correlations were found for the zinc concentration with global motility (r= -0.441, P<0.0001, Figure 2A) and progressive motility (r=-0.302, P=0.017, Figure 2B). Correlation of sperm zinc concentration with energy consumption/power was only significant with the power related to live & motile sperm (Table 3, Figure 3).

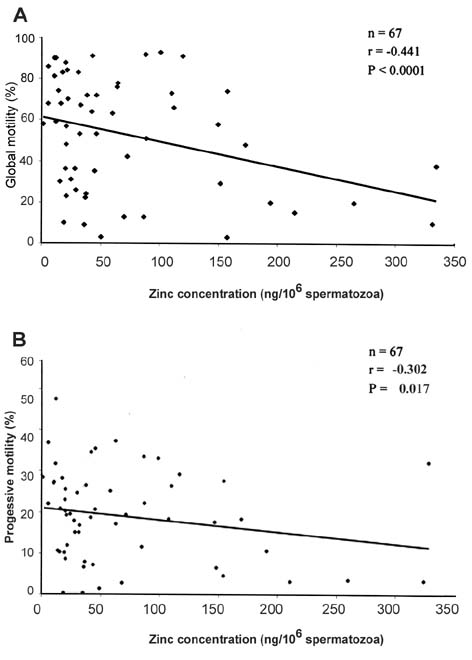

Figure
2. Spermatozoal zinc concentration correlated with global (A) and
progressive motility (B). Significant negative correlations can be seen
in both cases. n=67.
Figure 3. Mean spermatozoal zinc
concentration correlated with power of motile spermatozoa. A significant
positive correlation can be seen. n=67.
Table 3. Mean power of human spermatozoa correlated with spermatozoal zinc concentration (n=67). Only the correlation with the number of motile spermatozoa is significant. However, a tendency towards this significance throughout the parameter is visible.
|
Power |
Power |
Power |
Zinc
concentration |
r
= - 0.049 |
r
= 0.102 |
r
= 0.323 |
P
= 0.699 |
P
= 0.420 |
P
= 0.010 |
4 Discussion
Spermatozoa are the only cells that fulfill their purpose outside the body in another individual. Moreover, they are the smallest cells in the body with only a very thin cytoplasmic border, which does not contain high amounts of energy resources. Therefore, the energy must be taken up from the environment. In addition, in mature and highly differentiated spermatozoa, where almost the entire available energy will be invested for sperm movement [27, 28], special adaptation must have been developed during evolution in order to use the external energy most efficiently. Only an economic use of energy can guarantee an effective movement of spermatozoa, which is the most important sperm function.
A common characteristic of higher vertebrates is the similar use of ATP reserves. Generation of flagellar movement takes place by a relatively low ATP concentration and comparatively high amounts of ADP and AMP [27,29, 30]. In boar spermatozoa, Kamp et al. [27] showed that the phosphagenic systems, by which energy-rich phosphates are transported from the mitochondria to distal dynein-ATPases, do not exist as phospho-creatinine or creatinine kinase. Spermatozoa from bull, stallion and rat exhibit extraordinarily low creatine kinase activity [27, 31]; phosphagenic systems are not present. By contrast, human spermatozoa show a phosphagenic shuttle to overcome the transport of energy-rich metabolites by diffusion only [32]. On the other hand, in different mammalian species the glycolytic enzyme glyceraldehyde 3-phosphate dehydrogenase is bound to the fibrous sheath [33]. This would explain the ATP supply in distal parts of the flagellum.
Our data demonstrate that sperm movement is the most oxygen/energy consuming process in spermatozoa (0.85 µmol/106 motile spermatozoa 24 hours, which equals a power of 1.9 µW/106 motile spermatozoa). Relating oxygen/energy consumption to sperm vitality, an oxygen consumption of only 0.28 µmol/106 spermatozoa 24 hours (=54.4 mJ/106 spermatozoa 24 hours) was calculated. A basic metabolism of human spermatozoa was estimated at about 0.24 µmol/106 spermatozoa 24 hours (=0.5 µW/106 spermatozoa). Moreover, it can be seen that ejaculates with a higher percentage of motile spermatozoa consume a relatively lower amount of oxygen/energy than those with poorly motile spermatozoa. It appears that poorly motile spermatozoa are actually wasting the available energy. This phenomenon could be explained by the fact that glycolytic ATP production is required for vigorous motility of human spermatozoa [34] and will therefore not consume oxygen. On the other hand, highly motile spermatozoa could utilize the available energy much more efficiently. Such a mechanism was already proposed by Storey & Kayne [35], Kamp et al. [27] and Minelli et al. [28] in different animal models. However, a correlation analysis between sperm oxygen/energy consumption and different motility parameters has not yet been performed.
According to the "Geometric-Clutch Model" [21], the ODF play an important role in this energy transmission system. These flagellar substructures, which take at least 30 % of the total protein amount in human spermatozoa [13], are rather stiff and passive-elastic elements [6, 20] and transfer the kinetic energy produced in the axoneme towards the junction of the flagella with the sperm head. Due to a bigger effective diameter of the flagellum at this point, a higher torque can be generated [21]. This process is thought to intensify and bundle the energy generated from numerous dynein bonds in a flagellar curvature. Thus, progressive sperm motility is generated by co-operative action of the axoneme and stiff structural elements, the ODF [6]. The data of Holcomb-Wygle et al. [36] support this hypothesis. However, despite of the correlations between flagellar zinc and motility on the one hand and zinc and oxygen consumption on the other hand, one should not forget that motility is a parameter that is not exclusively based on ODF-function, but depends on other factors like changes in the sperm membrane as well. This can be seen in the rather mediocre correlation coefficients.
Our data also clearly support this hypothesis. Sperm motility, especially progressive motility, can efficiently be generated because of the presence of these stiff structural elements in the flagellum. The stiffness of the ODF results from the extraordinarily high amount of the amino acid cysteine, which forms disulphide-bridges. In this connection, zinc present in the ODF is of enormous importance. During spermatogenesis at the time of spermatide elongation, zinc is actively incorporated in the ODF [7]. This trace element binds to the sulfhydryl groups of the cysteine by forming zinc-mercaptide complexes [10] and protects the ODF from premature oxidation [14]. Subsequently, during epididymal sperm maturation, more than 60 % zinc is removed from the ODF [22, 24] resulting in their final stiffening by oxidation of the sulfhydryl-groups to disulphide-bridges [23]. Thus, the element zinc has motility-modulating properties. Spermatozoa containing a too high amount of zinc will be only poorly motile. This element was not efficienthy removed from the ODF during epididymal maturation. Earlier results demonstrating this negative correlation between flagellar zinc content and motility [6] were clearly confirmed in the present study. Thus, the removal of zinc from the ODF is a mandatory step in epididymal maturation of spermatozoa.
In the flagellum, zinc is bound to an extent of at least 75 % to the ODF [22]. This enormous amount of the element present in the ODF and the fact that synthesis of ODF proteins makes up at least 30 % of the total protein synthesis in human spermatozoa [13] emphasize the exceptional role of the ODF for the development of sperm movement in species with internal fertilization such as mammals. Synthesis of such an amount of a single protein structure must definitely provide a marked selection advantage for those species with strongly developed ODF; otherwise, these structures would have been eliminated during the course of evolution.
Numerous functions have been attributed to the ODF since their first description. Initially it was supposed that these substructures possess ATPase activity [15]. In fact, phosphoproteins could be identified in ODF from bull spermatozoa [16]. However, since ODF show structural parallels to the cytoskeleton, today they are believed to have rather passive-elastic functions [19]. The enormous amount of cysteine and therefore the high number of disulphide-bridges are indicative of these stabilizing functions [7]. Apart from these stabilizing features, which eventually lead to an improved energy conversion, ODF seem to play an additional role in protecting the flagella from shear forces, that occur during ejaculation [20].
In conclusion, our data clearly support the Geome-tric-Clutch Model?and demonstrate the importance of the ODF for generation of sperm motility. Only a whip-like flagellar beat, which is caused by stiff ODF, will enable spermatozoa to a sufficient progressive movement, for which the elimination of the element zinc from the ODF is an essential step in epididymal sperm maturation. ODF appear to have two main functions: (i) improving energy conversion and thus improving the flagellar beat and (ii) providing an efficient system to protect the flagella from shear forces.
Acknowledgements
This study was supported by the Schering Research Foundation, Berlin, Germany. The authors wish to thank Ms. A. Hanschke for skillful technical assistance as well as Mrs. G. Scharfe and Mrs. S. Henkel for linguistic review.
References
[1] Iyengar GV. Reference
values for the concentration of As, Cd, Co, Cr, Cu, Fe, I, Hg, Mn, Mo,
Ni, Pb, Se and Zn in selected human tissues and body fluids. Biol Trace
Element Res 1987; 12: 263-95.
[2] Janick J, Zeitz L, Whitmore WF. Seminal fluid and spermatozoon zinc
levels and their relationship to human spermatozoon motility. Fertil Steril
1971; 22: 573-80.
[3] Abbasi A, Prasad A, Rabbani P,
DuMouchelle E. Experimental zinc deficiency in man. J Lab Clin Med 1980;
96: 544-6.
[4] Millar MJ, Vincent NR, Mawson CA. An auto radiographic study of the
distribution of zinc-65 in rat tissues. J Histochem Cytochem 1961; 9:
111-25.
[5] And S, Carpino A, Buffone M, Maggiolini M, Giacchetto C, Seidita
F. Fructose, prostatic acid, phosphatase and zinc levels in the seminal
plasma of varicoceles. Int J Fert 1990; 35: 249-52.
[6] Henkel R, Bittner J, Weber R, Hther F, Miska W. Relevance of zinc
in human sperm flagella and its relation to motility. Fertil Steril 1999;
6: 1138-43.
[7] Baccetti B, Pallini V, Burrini AG. The accessory fibers of the sperm
tail. II: Their role in binding zinc in mammals and cephalopods. J Ultrastruc
Res 1976; 54: 261-75.
[8] Björndahl L, Kjellberg S, Roomans GM, Kvist U. The human sperm
nucleus takes up zinc at ejaculation. Int J Androl 1986; 9: 77-80.
[9] Carreras A, Mendoza C. Zinc levels in seminal plasma of fertile and
infertile men. Andrologia 1990; 22: 279-83.
[10] Calvin HI, Yu CC, Bedford JM. Effects of epididymal maturation, zinc
(II) and copper (II) on the reactive sulfhydryl content of structural
elements in rat spermatozoa. Exp Cell Res 1973; 81: 333-41.
[11] Irons MJ, Clermont Y. Formation of the outer dense fibers during
spermiogenesis in the rat. Anat Rec 1982; 202: 463-71.
[12] Serres C, Escalier D, David G. Ultrastructural morphometry of the
human sperm flagellum with a stereological analysis of the length of the
dense fibers. Biol Cell 1983; 49: 153-62.
[13] Perez-Ramirez B, Castells M. In vitro biosynthesis of rat
sperm outer dense fiber components. Life Sci 1991; 49: 1549-54.
[14] Henkel R, Baldauf C, Bittner J, Weidner W, Miska W. Elimination of
zinc from the flagella of spermatozoa during epididymal transit is important
for motility. Reprod Technol 2001; 10: 280-5.
[15] Nelson L. Cytochemical studies with the electron microscope: I. Adenosinetriphosphatase
in rat spermatozoa. Biochim Biophys Acta 1958; 27: 634-41.
[16] Brito M, Figueroa J, Vera JC, Cortes P, Hott R, Burzio LO. Phosphoproteins
are structural components of bull sperm outer dense fiber. Gamete Res
1986; 15: 327-36.
[17] Henkel R, Stalf T, Miska W. Isolation and partial characterization
of the outer dense fibers from human spermatozoa. Biol Chem Hoppe-Seyler
1992; 373: 685-9.
[18] Calvin HI, Hwang FHF, Wohlrab H. Localization of zinc in a dense
fiber-connecting piece fraction of rat sperm tails analogous chemically
to hair keratin. Biol Reprod 1975; 13: 228-39.
[19] Haidl G. Outer dense fibres: functional or structural elements. Andrologia
1993; 25: 13-7.
[20] Baltz JM, Pallini V, Burrini AG. Dense fibres protect mammalian sperm
against damage. Biol Reprod 1990; 43: 485-91.
[21] Lindemann CB, Kanous KS. "Geometric clutch" hypothesis
of axonemal function: Key functions and testable predictions. Cell Motil
Cytoskelet 1995; 31: 1-8.
[22] Calvin HI. Comparative labelling of rat epididymal spermatozoa by
intratesticularly administered 65ZnCl2 and [35S]cysteine.
J Reprod Fert 1981; 61: 65-73.
[23] Cornwall GA, Vindivich D, Tillman S, Chang TS. The effect of sulfhydryl
oxidation on the morphology of immature hamster epididymal spermatozoa
induced to acquire motility in vitro. Biol Reprod 1988; 39: 141-55.
[24] Stoltenberg M, Sorensen MB, Danscher G, Juhl S, Andreasen A, Ernst
E. Autometallographic demonstration of zinc ions in rat sperm cells. Mol
Hum Reprod 1999; 3: 763-77.
[25] Yeung CH, Cooper TG, Oberpenning F. Changes in movement characteristics
of human spermatozoa along the length of the epididymis. Biol Reprod 1993;
49: 274-80.
[26] Quinn P, Kerin JF, Warnes GM. Improved pregnancy rate in human in
vitro fertilization with the use of a medium based on the composition
of human tubal fluid. Fertil Steril 1985; 44: 493-8.
[27] Kamp G, Bsselmann G, Lauterwein J. Spermatozoa: models for studying
regulatory aspects of energy metabolism. Experientia 1996; 52: 487-94.
[28] Minelli A, Moroni M, Castellini C, Lattaioli I, Ronquist G. Rabbit
spermatozoa: a model system for studying ATP homeostasis and motility.
J Androl 1999; 2: 259-66.
[29] Perchec CG, Jeulin C, Cosson J, Andr F, Billard R. Relationship
between sperm ATP content and motility of carp spermatozoa. J Cell Sci
1995; 108: 747-53.
[30] Perchec CG, Cosson MP, Cosson J, Jeulin C, Billard R. Morphological
and kinetic changes of carp spermatozoa after initiation of motility in
distilled water. Cell Motil Cytoskelet 1996; 35: 113-20.
[31] Robitaille PM, Robitaille PA, Martin PA, Brown GG. Phosphorus-31
nuclear magnetic resonance studies of spermatozoa from the boar, ram,
goat and bull. Comp Biochem Physiol 1987; 87B: 285-96.
[32] Yeung CH, Majumder GC, Rolf C, Behre HM, Cooper TG. The role of phosphocreatine
kinase in the motility of human spermatozoa supported by different metabolic
substrates. Mol Hum Reprod 1996; 1: 591-6.
[33] Westhoff D, Kamp G. Glyceraldehyde 3-phosphate dehydrogenase is bound
to the fibrous sheath of mammalian spermatozoa. J Cell Sci 1997; 110:
1821-9.
[34] Williams AC, Ford WCL. The role of glucose in supporting motility
and capacitation in human spermatozoa. J Androl 2001; 22: 680-95.
[35] Storey BT, Kayne FJ. Properties of pyruvate kinase and flagellar
ATPase in rabbit spermatozoa: relation to metabolic strategy of the sperm
cell. J Exp Zool 1980; 211: 361-7.
[36] Holcomb-Wygle DL, Schmitz KA, Lindemann CB. Flagellar arrest behavior
predicted by the geometric clutch model is confirmed experimentally by
micromanipulation experiments on reactivated bull sperm. Cell Motil Cytoskelet
1999; 44: 177-89.
Correspondence
to: PD Dr. Ralf Henkel,
Center for Dermatology and Andrology, Gaffkystr. 14, D-35385 Giessen,
Germany.
Tel: +49-641-99 43350, Fax: +49-641-99 43368
E-mail: ralf.henkel@derma.med.uni-giessen.de
Received 2003-01-10
Accepted 2003-03-07
