Expression
and localization of Smad1, Smad2 and Smad4 proteins in rat testis during
postnatal development
Jing HU1, Yuan-Qiang
ZHANG1, Xin-Ping LIU2, Rui-An WANG1,
Yan JIN3, Ruo-Jun XU4
1Department of Histology
and Embryology, 2Department of Biochemistry and Molecular Biology,
3Department of Oral Histology and Pathology, School of Dentistry,
Fourth Military Medical University, Xian
710032, China
4Department of Zoology, University of Hong Kong, Hong Kong,
HKSAR, China
Asian
J Androl 2003 Mar; 5: 51-55
Keywords:
TGF-b;
Smad1; Smad2; Smad4; testis
Abstract
Aim: To study the
expression and regulation of Smad1, Smad2 and Smad4 proteins (intracellular
signaling molecules of transforming growth factor-b family) in rat testis
during postnatal development. Methods: The whole testes were collected
from SD rats aged 3, 7, 14, 28 and 90 (adult) days. The cellular localization
and developmental changes were examined by immunohistochemistry ABC method
with the glucose oxidase-DAB-nickel enhancement technique. Quantitative
analysis of the immunostaining was made by the image analysis system.
The Smads proteins coexistence in the adult rat testis was tested by the
double immune staining for CD14-Smad4 and Smad2-Smad4. The protein expression
of Smad during rat testicular development was examined by means of Western
blots. Results: Smad1, Smad2 and Smad4 were present throughout
testicular development. The immunostaining of Smad1 and Smad2 were present
in spermatogenic cells. A positive immunoreactivity was located at the
cytoplasm, but the nucleus was negative. Smad1 was immunolocalized at
the d14, d28 and adult testes, while Smad2, at the d7, d14, d28 and adult
testis. There was positive immunoreaction in the Sertoli cells and Leydig
cells as well. The immunolocalization of Smad4 was exclusively at the
cytoplasm of Leydig cells and the nuclei were negative throughout the
testicular development. No expression was detected in the germ cells.
The results of image and statistical analysis showed that generally the
expression of Smad1, Smad2 and Smad4 in the testis tended to increase
gradually with the growth of the rat. Conclusion: The present data
provide direct evidences for the molecular mechanism of TGF-b
action in rat testes during postnatal development and spermatogenesis.
1 Introduction
Normal testicular development
and maintenance of spermatogenesis during fetal and postnatal life is
controlled not only by hormone but also by cytokines and growth factors
[1]. The transforming growth factor - b
(TGF-b)
superfamily is one such important local regulator of the testicular function.
The TGF-b
superfamily members, including TGF-bs,
activins/inhibins and the bone morphogenetic proteins (BMPs), are structurally
related cytokines found in species ranging from worms and insects to mammals.
A wide spectrum of cellular functions such as proliferation, apoptosis,
differentiation and migration are regulated by them [2, 3]. These factors
signal through heteromeric complexes of transmembrane type I and type
II serine/threonine kinase receptors. Within this complex the type II
receptor kinase activates the type receptor kinase, which subsequently
propagates signals to the Smad pathway [3]. Smad proteins are recently
identified proteins that mediate intracellular signaling of the TGF-b
superfamily from the cell-surface to the nucleus [3, 4]. The name Smad
originates from a fusion between Drosophila mothers against dpp
(Mad) and C. elegans Sma [5]. The Smad family can be divided
into three distinct subfamilies depending on their structures and functions.
The receptor-regulated Smads (R-Smads) are phosphorylated by specific
type I receptors on a carboxyl-terminal SSXS motif. Thus, the TGF-b and
activin type I receptors activate Smad2 and -3, whereas the BMPs type
I receptors target Smad1, -5, and -8. Then the R-Smads combine with the
common-mediator Smads (Co-Smads) forming heteromeric complexes in the
nucleus. Nuclear Smads complexes bind to DNA directly or indirectly through
other DNA-binding proteins and regulate the transcription of target genes.
Smad4 is the only vertebrate Co-Smad identified up to now. The inhibitory
Smads (I-Smads) inhibit the activation of R-Smads [4, 6-8].
Several studies have investigated
the expression and effects of members of the TGF-b
superfamily and their receptors in the mammal testes during postnatal
development. Both the Leydig cells and germ cells in fetal and neonatal
pigs and rats bear types I and II TGF-b
receptors, which are involved in signaling [9-12]. Members of the TGF-b
superfamily may be involved during spermatogenesis and testicular development
as the autocrine or paracrine factors, but their roles are far from clear.
In order to shed light on the mechanisms of TGF-b
action in spermatogenesis, it is crucial to determine whether and where
their downstream signaling molecules are expressed in the testis. In this
paper the expression and localization of Smad1, Smad2 and Smad4 proteins
in the developing and adult rat testes were studied by Western blot and
immunohistochemistry.
2 Materials and methods
2.1 Tissue preparation
Healthy male Sprague-Dawley
rats of 3, 7, 14, 28 and 90 days of age (corresponding to neonatal, pre-pubertal,
pubertal and adult, respectively) with 5 animals in each age group, were
obtained from the Animal House of the Fourth Military Medical University.
Rats were housed in a 12 h light/12 h dark and temperature-controlled
room with food and water provided ad libitum. Rats were anesthetized
by intraperitoneal injection of 4 mg/kg sodium pentobarbital and both
testes were dissected out. One testis was fixed in Bouin's
solution for 12 h, embedded in paraffin,
cut into 4 mm sections and mounted onto 2 % 3-aminopropyltriethoxysilane-coated
slides for immunohistochemistry; the other was stored at -70
until proteins isolation.
2.2 Reagents
Goat anti-Smad1, Smad2,
Smad4 and CD14 polyclonal antibodies were purchased from Santa Cruz Biotechnology
(Santa Cruz, USA). Smad1 (T-20) was raised against a peptide mapping within
the amino terminal domain of human origin Smad1, Smad2 (S-20) against
a peptide mapping near the amino terminus of human origin Smad2 and Smad4
(C-20) against a peptide mapping at the carboxyl terminus of human origin
Smad4. The other reagents were purchase from the following vendors: biotinylated
rabbit anti-goat IgG antibody from Santa Cruz, USA; avidin biotin-peroxidase
complex (ABC) from Dakopatts, Diaminobenzedin (DAB) from Sigma, D.P.X.
mountant from BDH, UK; Enhanced Chemiluminescence (ECL) Western blotting
system and Nitrocellulose filter (NC) from Sino-American Biotechnology
Co., China.
2.3 Western blot analysis
After extracting the
total protein from the testis, the samples were subjected to electrophoresis
on a 12 % SDS polyacrylamide gel and transferred onto nitrocellulose filter.
Then the filters were made Western blot [13]. The proteins were detected
by two methods: ECL Western blotting system (protocols supplied by manufacturer)
and DAB [11].
2.4 Immunohistochemistry
The standard ABC staining
method was used [14]. The antigen sites were visualized with the glucose
oxidase-DAB-Nickel enhancement technique [15]. The sections were dehydrated
in graded ethanol, cleared in xylene and coverslipped using DPX. Sections
were observed and photographed using a BH-2 microscope (Olympus, Japan).
The specificity of the antibody was controlled by using PBS instead of
the primary antibody.
2.5 Image and statistical
analysis
Immunostaining of Smads
was performed by the densitometric test with the image analysis system
Q-500 (Leica). Taking 5 pieces of tissue sections from each rat and 4
units (each 0.015 mm2) out of a piece. The optical density
of 4 randomly selected positive cells was detected at a unit, thus there
were 16 data in a piece of section. After homogeneity of variance by the
Bartlett test, the data were analyzed by two-tailed ANOVA using SPSS 10.0
for Windows software program. The results were expressed in meanSEM
and P<0.05 was considered statistically significant.
2.6 Double staining immunohistochemistry
The sections were incubated at 4
with goat anti-CD14 and Smad2 IgG (1:100) overnight, with biotinylated
rabbit anti-goat IgG antibody (1:200) for 2 h and with ABC complex (1:100)
for 1 h. Then, the antigenic sites were visualized with DAB (0.05 % diaminobenzidine
in PBS containing 0.035 % hydrogen peroxide) for 3~5 min. Four PBS washes
each for 15 min were done in order to clear away the first antibody, the
anti-CD14 and the Smad2 IgG. The sections were then incubated with goat
anti-Smad4 IgG and visualized by the glucose oxidase-DAB-nickel enhancement
technique. Images were observed and photographed with an Olympus BH-2
optical microscope.
3 Results
3.1 Western blot analysis
The three Smads were
expressed throughout the testicular development, i.e., there was one band
in the testes of rats of each age group. Smad1 and Smad2 antibodies revealed
a 52 kDa protein and Smad4 antibody a 62 kDa protein (Figure
1).

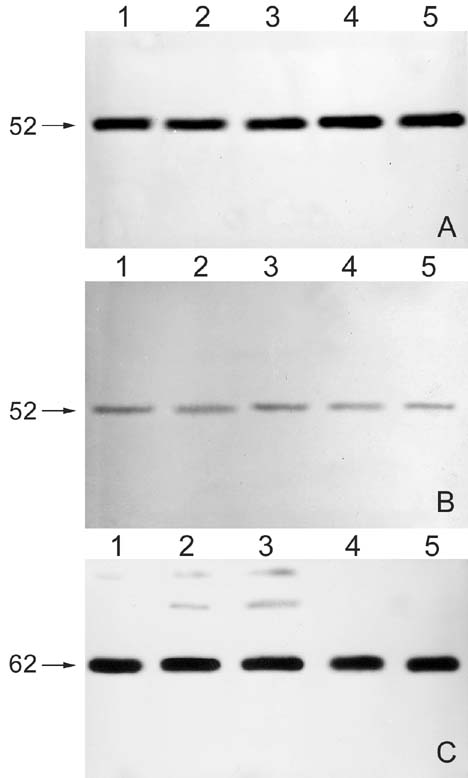

Figure
1. Expression of Smad proteins in rat testis during postnatal development
by means of Western Blot (A: Smad1, B: Smad2, C: Smad4; 1: d3, 2: d7,
3: d14, 4: d28, 5: Adult).
3.2 Immunolocalization of
Smads
Immunoreactivity of
Smad1 and Smad2 was present in the spermatogenic cells and a positive
immunoreaction was located at the cytoplasm, but not the nucleus. Immunolocalization
of Smad1 was found in the d14, d28 and adult testis (Figure
2: 1, 2, 3, 4), while Smad2 in the d7, d14, d28 and adult testes
(Figure 2: 5, 6, 7, 8).
There was a positive immunoreaction in the Sertoli and Leydig cells (Figure
2: 9, 10) as well. Smad4 immunoreactivity was localized at
the cytoplasm of Leydig cells in all the age groups. No expression was
detected in the germ cells (Figure
3, 4). Nothing was observed
in the negative controls.
Figure
2. Expression of Smad1 and Smad2 proteins in rat testis during postnatal
development.
1. d28 (hspermatogenic
cells) 200
2. Adult (hspermatogenic
cells) 200
3. Adult 200
4. Spermatogenic cells of Smad1 protein positive immunoreaction (*meiotic
germ cells and spermatids nearer to the lumen of seminiferous tubule;
hspermatogonia
and primary spermatocytes at periphery of seminiferous tubule) 200
5. d14 (hspermatogenic
cells) 200
6. d28 (hspermatogenic
cells) 200
7. Adult (hspermatogenic
cells) 200
8. Adult (hspermatogenic
cells) 100
9. Sertoli cells showing Smad2 protein immunoreactivity (h)
400
10. Leydig cells showing Smad2 protein immunoreactivity (h)
400
Figure
3. Expression of Smad4 protein in rat testis during postnatal development.
A. d3 200; B. d3 400; C. d7 200
D. d7 400; E. d14 200; F. d14 00
G. d28 200; H. d28 400
Figure
4. Expression of Smad4 in adult rat testis.
A. Showing Smad4 protein immunoreaction, mainly in Leydig cells (h)
100
B. Leydig cells showing Smad4 protein immunoreactivity 400
C. Smad4 in Leydig cells with difference in intensity of staining (hStrong
staining; rWeak
staining; pMedium
staining ) 400
D. Sertoli cells showing Smad4 protein immunoreactivity (?/FONT>) 400
3.3 Image
As shown in Table 1,
Smad1, Smad2 and Smad4 were all present in rats starting at d3. Both Smad1
(P< 0.05) and Smad2 (P<0.01) expressions increased
progressively thereafter, while Smad4 (P<0.01) expression increased
progressively except at d14.
Table 1. Smad protein immunoreactive
products in rat testis (n=16).
Age
|
Smad1
|
Smad2
|
Smad4
|
d3
|
|
|
65.252.85
|
d7
|
|
87.31.21
|
92.563.98
|
d14
|
88.751.31
|
100.501.27
|
84.53.95
|
d
28 |
88.8750.48
|
100.370.80
|
130.313.07
|
Adult
|
94.1251.16
|
105.060.73
|
136.813.03
|
ANOVA
|
P<0.05
|
P<0.01
|
P<0.01
|
3.4 Double staining immunohistochemistry
The immuoreactivity
of CD14 and Smad4 was present in the loose connective tissue between the
seminiferous tubules. Macrophages showed a brown staining of CD14, while
Leydig cells, an indigo staining of Smad4. Double stained cells could
also be found (Figure 5: a, b).
Smad2 was present in the
spermatogenic cells and Leydig cells and the brown substance in the cytoplasm.
Smad4 was exclusively localized at the cytoplasm of the Leydig cells and
its indigo staining was stronger than the brown staining of Smad2. Double
staining could be found in the Leydig cells (Figure
5: c, d).
Figure
5. Result of goat anti-CD14-Smad4 and goat anti-Smad2-mad4 double
staining immunohistochemistry in adult rat testis.
a. Goat anti-CD14-mad4 double staining 200
b. Goat anti-CD14-mad4 double staining (rMacrophages
showing immunostaining of CD14, pLeydig
cells showing immuno-staining of Smad4, hdouble
staining cells) 400
c. Goat anti-Smad2-mad4 double staining 200
d. Goat anti-Smad2-mad4 double staining (rGerm
cells showing immunostaining of CD14, pLeydig
cells showing immunostaining of Smad4, hdouble
staining cells) 400
4 Discussion
TGF-b
superfamily members are a group of polypeptides that regulate spermatogenesis
and steroidogenesis through autocrine or paracrine mechanism [9-12]. The
mechanism of TGF-b
action on male reproduction is not clear. Smad proteins are a group of
important intracellular signaling molecules of the TGF-b superfamily.
Smad1, the intracellular signal transducer of BMPs, has been documented
as the only Smad expression in male germ cells, from pachytene spermatocytes
to stage 1 spermatids in mice [16]. As the intracellular signaling molecule
of both TGF-bs
and activins, Smad2 was detected from preleptotene to pachytene spermatocyte
during postnatal development and cycling of seminiferous epithelium at
the age of 1 week [17], but other Smads are not clearly known.
In the present study, the
result of Western blot showed that Smad1, Smad2 and Smad4 proteins expressed
in the testis of rats at d3, which was earlier than the results of Zhao
& Hogen [16] and Wang & Zhao [17] obtained by in situ hybridization
and immuno-histochemistry. The Smad4 protein was present in the Leydig
cells of rats throughout the whole observation period. In our experiment,
the results obtained by Western blot and immunohistochemistry were different;
perhaps this may be due to that the antibody appropriate for Western blot
is not sensitive to immunohistochemistry.
Both Smad1 and Smad2 are
R-Smads and Smad1 mediates the intracellular signaling of BMP, whereas
Smad2, the intracellular signaling of TGF-b
and activin. Though they were mainly located in the spermatogenic cells,
Smad2 is also expressed in the Sertoli cells and Leydig cells and the
expression of Smad2 was more intense and occurred earlier than Smad1.
Thus we believe that Smad2 may play a more important role in testicular
regulation.
Smad4 is a Co-Smad, which
works together with Smad1 and Smad2 to control gene transcription. We
found that Smad4 protein expressed in the clustered or scattered Leydig
cells throughout postnatal development with increasing intensity except
at d14. It is believed that after birth the fetal Leydig cells do not
transform into their adult counterparts, but are replaced by new adult-type
Leydig cells differentiated from the stem cells [18]. In rats, by about
d14 after birth, very few Leydig cells are found in the testis and when
the new adult Leydig cells first appear, they are scattered between the
tubules and not in clusters as the fetal Leydig cells. The immunoreactivity
of Smad4 in adult Leydig cells was weaker than that in the fetal cells.
Smad4 may regulate spermatogenesis indirectly through its action on Leydig
cells. Macrophages are relatively plentiful in the interstitium of testis,
but immunoreactivity of Smad4 was mainly found in the Leydig cells and
not in the macrophages. There were a few double stained cells, thus we
assume that macrophages might also express Smad4, which however, is awaiting
further documentation.
In conclusion, TGFbs,
activin and BMPs may influence different aspects of spermatogenesis and
testicular development, which provides direct evidence for the action
mechanism of TGF-b
superfamily members on male reproduction.
References
[1] Gnessi
L, Fabbri A, Spera G. Gonadal peptides as mediators of development and
functional control of the testis: an integrated system with hormones and
local environment. Endocr Rev 1997; 18: 541-609.
[2] Massague J, Cheifetz S, Laiho M, Raleh DA, Weis FM, Zentella A. Transforming
growth factor-b. Cancer Surv 1992; 12: 81-103.
[3] Massague J. TGF-b signal transduction. Annu Rev Biochem 1998; 67:
753-91.
[4] Padgett RW, Cho SH, Evangelista C. Smads are the central component
in transforming growth factor-b signaling. Pharmacol Ther 1998; 78: 47-52.
[5] Derynck R, Gelbart WM, Harland
RM. Nomenclature: Vertebrate mediators of TGF-b family signals. Cell 1996;
87: 173.
[6] Heldin CH, Miyazono K, ten Dijke P. TGF-b
signaling from cell membrane to nucleus through Smad proteins. Nature
1997; 390 (6659): 465-71.
[7] Piek E, Heldin CH, Ten Dijke P. Specificity,
diversity, and regulation in TGF-b superfamily signaling. FASEB-J 1999;
13: 2105-24.
[8] Kawabata M, Miyazono K. Signal transduction
of the TGF-b superfamily by Smad proteins. J Biochem Tokyo 1999; 125:
9-16.
[9] Caussanel V, Tabone E, Hendrick JC, Dacheux
F, Benahmed M. Cellular distribution of transforming growth factor bs
1, 2, and 3 their types I and II receptors during postnatal development
and spermatogenesis in the boar testis. Biol Reprod 1997; 56: 357-67.
[10] Le Magueresse-Battistone B, Morera AM, Goddard l, Benahmed M. Expression
of mRNAs for transforming growth factor-b receptors in the rat testis.
Endocr 1995; 136: 2788-91.
[11] Olaso R, Pairault C, Saez JM, Habert H.
Transforming growth factorb3 in the fetal and neonatal rat testis: immunolocalization
and effect on fetal Leydig cell function. Histochem Cell Biol 1999; 112:
247-54.
[12] Zhao GQ, Hogan BL. Evidence
that mouse Bmp8a (Op2) and Bmp8b are duplicated genes that play a role
in spermatogenesis and placental development. Mech Dev 1996; 57: 159-68.
[13] Sambrook J, Fritsch EF, Maniatis
T. Molecular cloning a laboratory manual 2nd ed. Bei Jing: Science Press;
1992. p 880-98.
[14] Cai WQ, Wang BY. Practical immunocytochemistry
and nucleic acid hybridization techniques. Chen Du: Science Technique
Press in Si Chuan; 1994. p119-21.
[15] Zhang YQ, Su HC. Application of glucose oxidase-DAB-nickel in the
double immunostaining techniques. Chin J of Zoology 1990; 25: 36-9.
[16] Zhao GQ, Hogan B. Evidence that
mothers-against-dpp-related 1 (Madr1) plays a role in the initiation and
maintenance of spermatogenesis in the mouse. Mech Dev 1997; 61 : 63-73.
[17] Wang RA, Zhao GQ. Transforming growth factor b signal transducer
Smad2 is expressed in mouse Meiotic germ cells, Sertole cells, and Leydig
cells during spermatogenesis. Biol Reprod 1999; 61 : 999-1004.
[18] Saez JM. Leydig cells: endocrine,
paracrine and autocrine regulation. Endocr Rev 1994; 15: 574-626.
home
Correspondence
to: Prof. Y. Q. Zhang,
Department of Histology and Embryology, Fourth Military Medical University,
Xi'an 710032, China.
Tel: +86-29-337 4508, Fax: +86-29-337 4508
E-mail: zhangyq@fmmu.edu.cn
Received 2002-04-28 Accepted 2002-12-05
The work was supported by the National Science Foundation of China (39870109)
and the Military Medical Foundation ( 98M106, 01MA183).
|
